Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push-pins from the wheelhouse liner.
  2. Remove the bolt that retains the wheelhouse liner to the rocker molding
  3. Remove the wheelhouse liner from the vehicle.

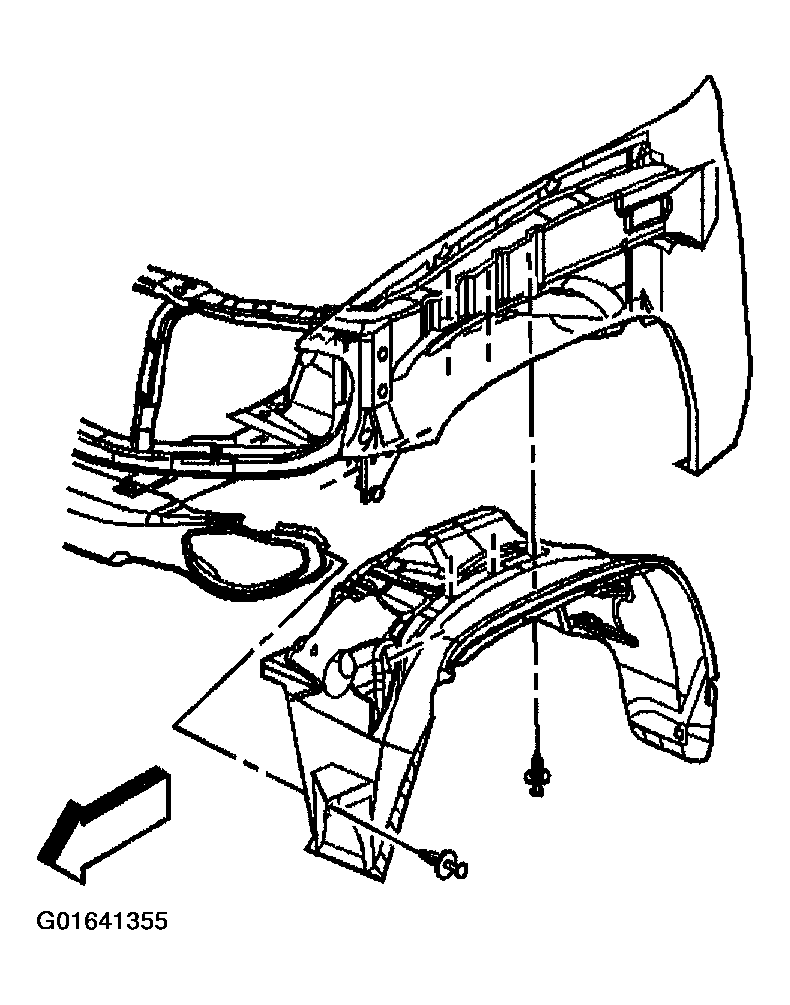

    Fig 1: Removing Wheelhouse Liner From Vehicle
    G01641355Courtesy of GENERAL MOTORS CORP.
