Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wheelhouse liner to the vehicle.
  2. Install the push-pins that retain the wheelhouse liner to the body.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the bolt that retains the wheelhouse liner to the rocker molding.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

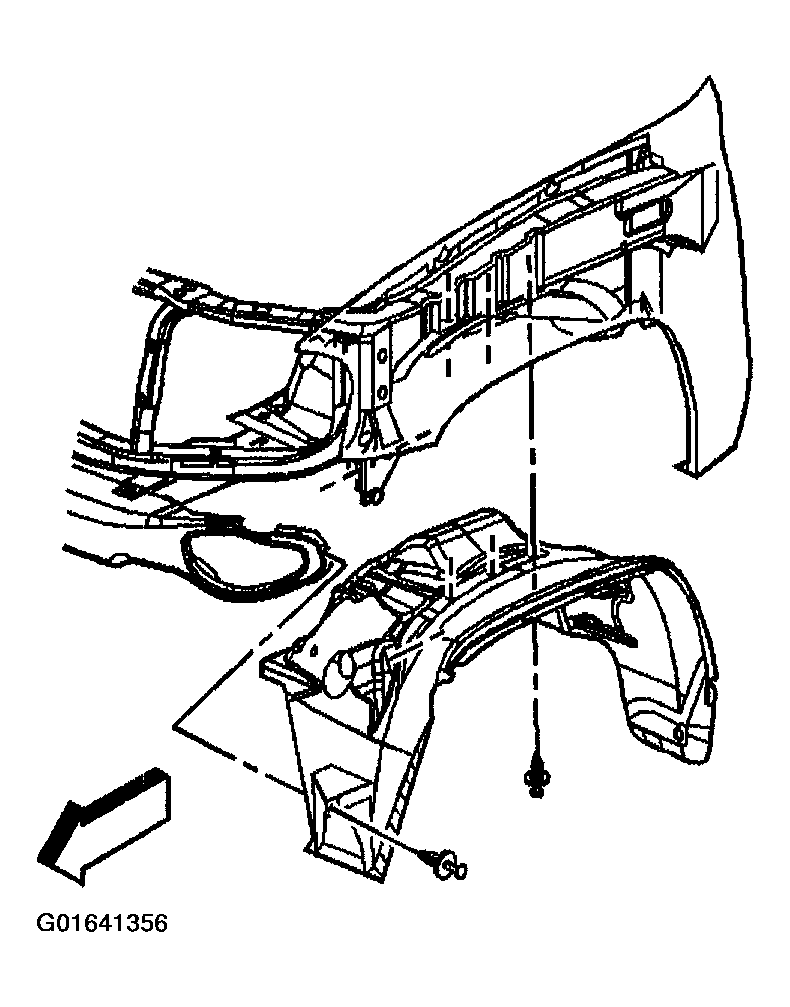

    Fig 1: Installing Wheelhouse Liner To Vehicle
    G01641356Courtesy of GENERAL MOTORS CORP.
