Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator air intake baffle. Refer to AIR INTAKE BAFFLE REPLACEMENT - RADIATOR   .
  2. Remove the headlamp housing panel. Refer to HEADLAMP HOUSING PANEL REPLACEMENT (OLDSMOBILE)   or HEADLAMP HOUSING PANEL REPLACEMENT (CHEVROLET, GMC)   .
  3. Remove the hood latch. Refer to HOOD LATCH REPLACEMENT   .
  4. Remove the bolts that retain the hood latch support to the radiator support.
  5. Remove the hood latch support from the vehicle.

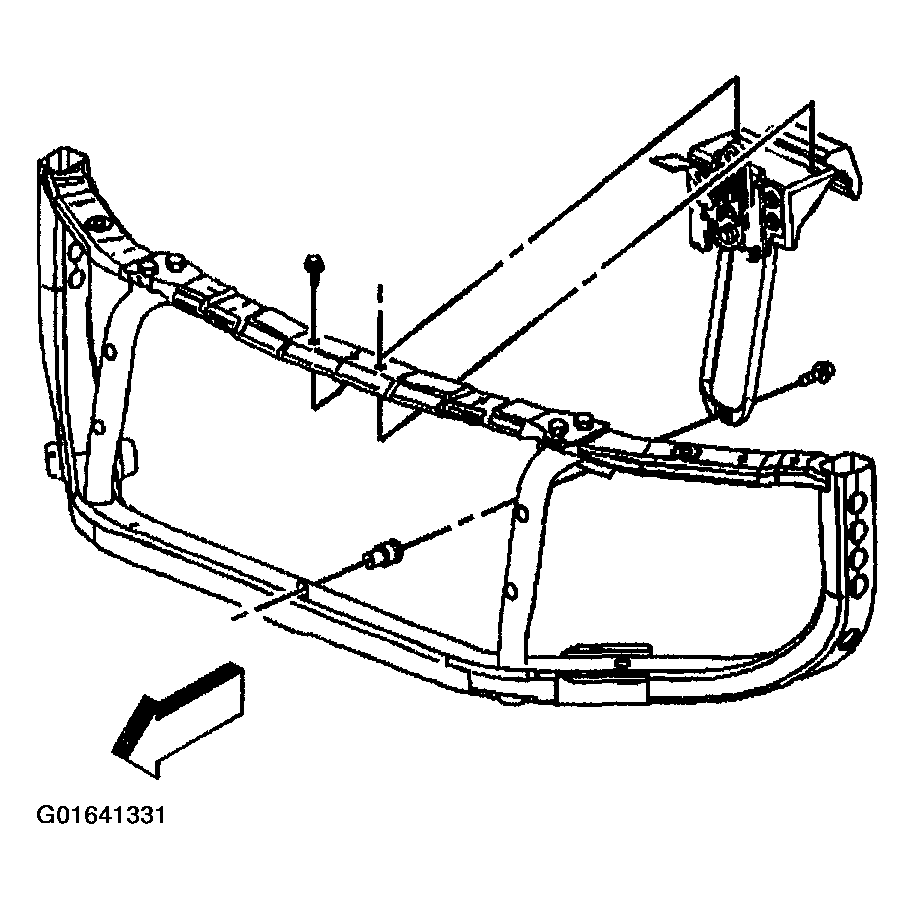

    Fig 1: Removing Bolts That Retain Hood Latch Support To Radiator Support
    G01641331Courtesy of GENERAL MOTORS CORP.
