Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood latch support to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts that retain the hood latch support to the radiator support.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  3. Install the hood latch. Refer to HOOD LATCH REPLACEMENT   .
  4. Install the headlamp housing panel. Refer to HEADLAMP HOUSING PANEL REPLACEMENT (OLDSMOBILE)   or HEADLAMP HOUSING PANEL REPLACEMENT (CHEVROLET, GMC)   .
  5. Install the radiator air intake baffle. Refer to AIR INTAKE BAFFLE REPLACEMENT - RADIATOR   .

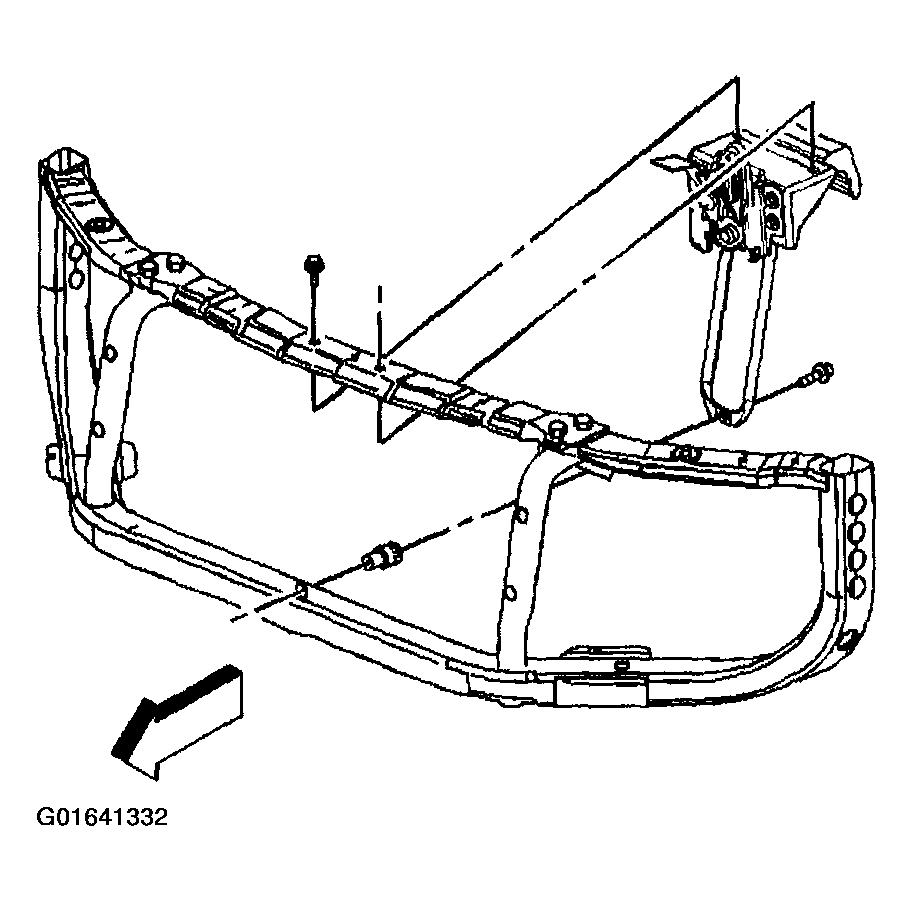

    Fig 1: Installing Bolts That Retain Hood Latch Support To Radiator Support
    G01641332Courtesy of GENERAL MOTORS CORP.
