Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille. Refer to GRILLE REPLACEMENT (GMC)  or GRILLE REPLACEMENT (OLDSMOBILE)  or GRILLE REPLACEMENT (CHEVROLET)  in Exterior Trim.
  2. Using a grease pencil or other suitable marking device, mark the location of the latch on the mounting bracket.
  3. Remove the bolts that attach the latch to the mounting bracket.

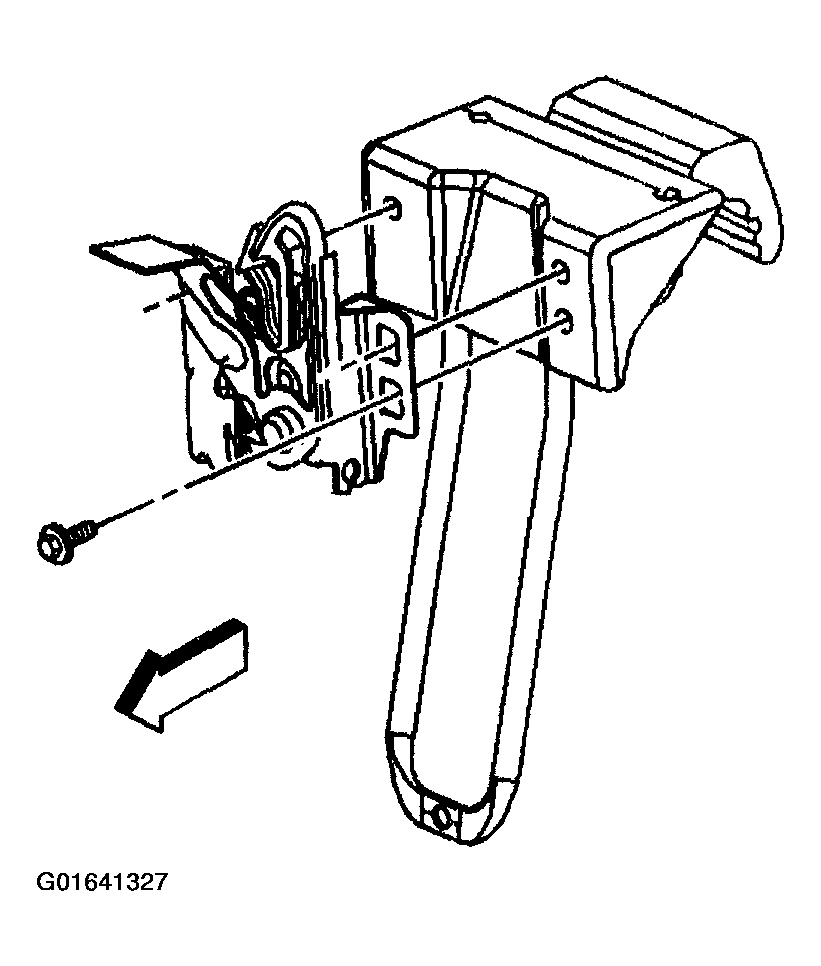

    Fig 1: Removing Bolts That Attach Latch To Mounting Bracket
    G01641327Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the hood latch cable from the latch.
  5. Remove the latch from the vehicle.

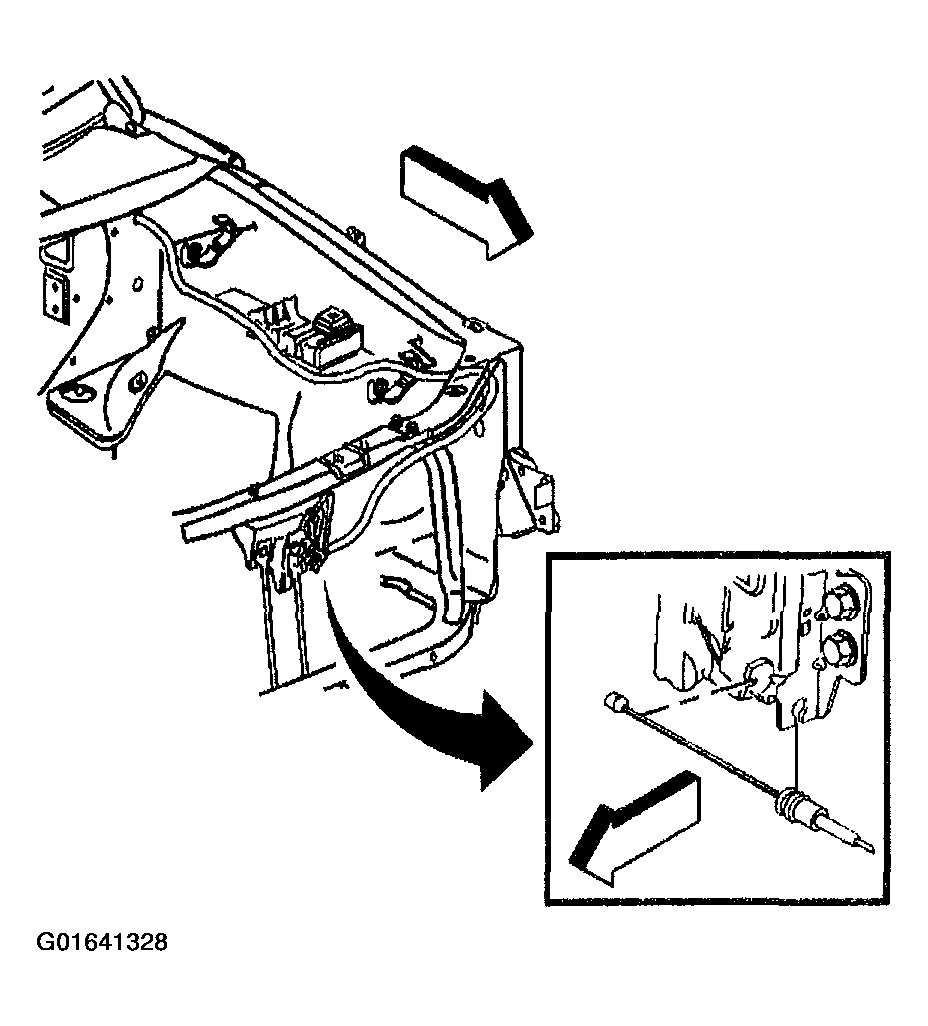

    Fig 2: Disconnecting Hood Latch Cable From Latch
    G01641328Courtesy of GENERAL MOTORS CORP.
