Adjustment Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the bolts retaining the hood latch to the support bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Move the hood latch from side to side until the striker enters the center of the latch assembly.

    Tighten

    Tighten the bolts retaining the hood latch to the support bracket to 10 N.m (89 lb in).

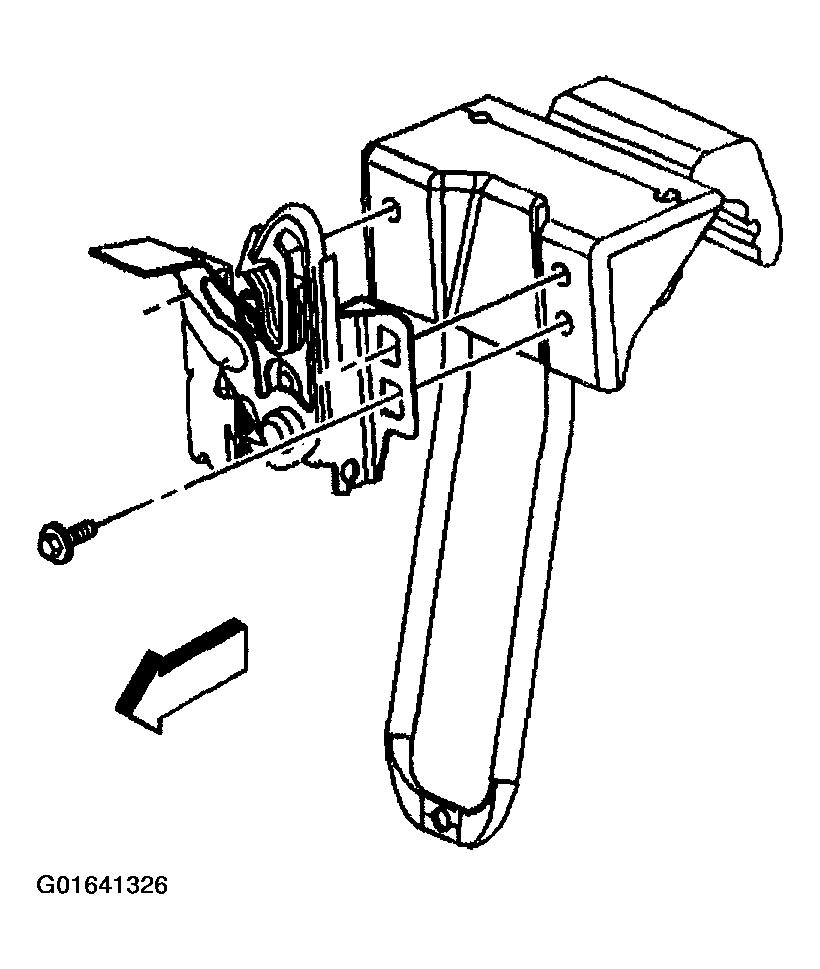

    Fig 1: Adjusting Bolts Retaining Hood Latch To Support Bracket
    G01641326Courtesy of GENERAL MOTORS CORP.
