Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hood. Refer to HOOD REPLACEMENT   .
  2. Using a grease pencil or other suitable marking device, mark the location of the hinge(s) (3) to the body.
  3. Remove the bolts (2) that retain the hinge(s).
  4. Remove the hinge(s) from the body.

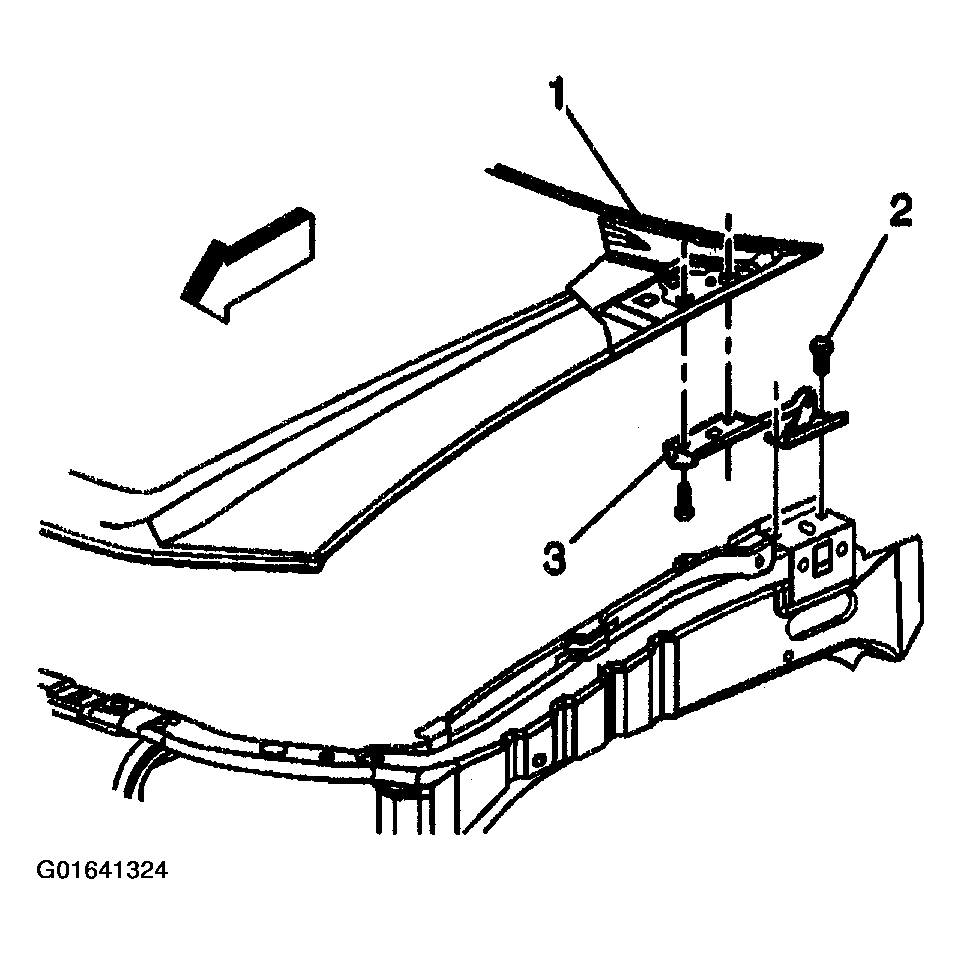

    Fig 1: Removing Bolts & Hinges
    G01641324Courtesy of GENERAL MOTORS CORP.
