Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hinge(s) (3) to the body as previously marked.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts (2) that retain the hinge(s) to the body.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the hood. Refer to HOOD REPLACEMENT   .

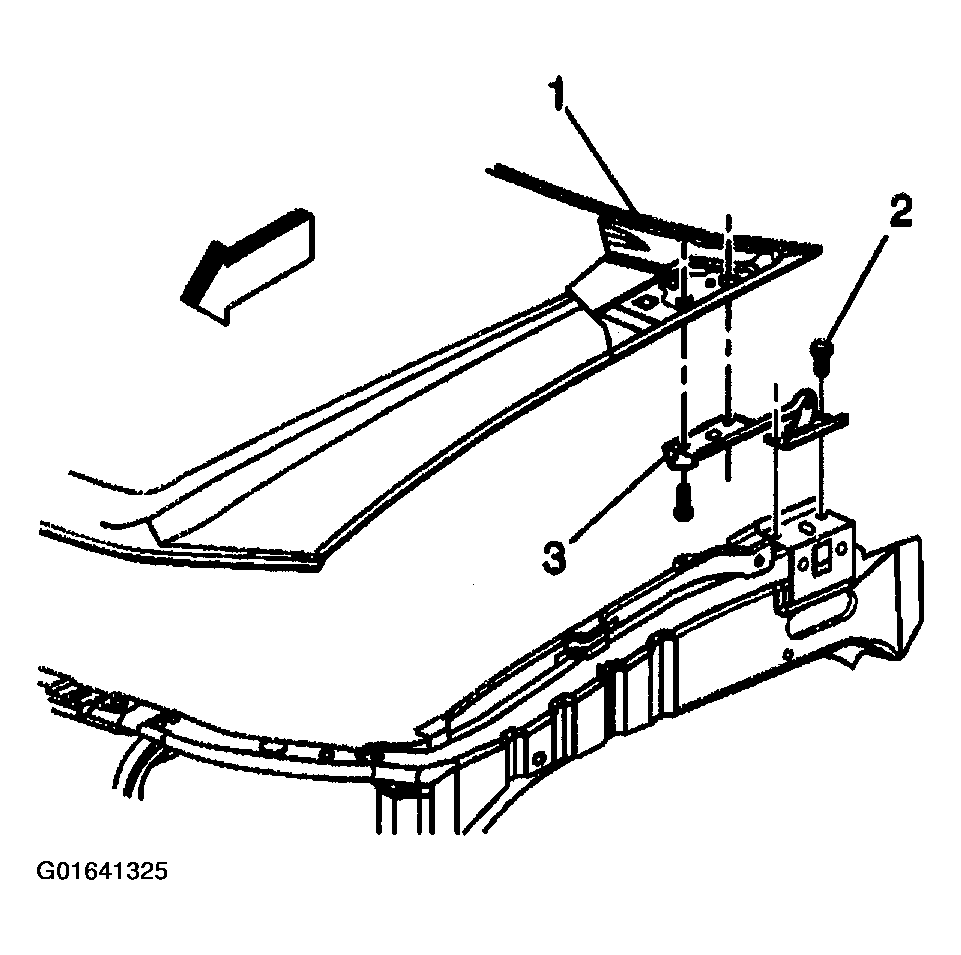

    Fig 1: Installing Hinges & Bolts
    G01641325Courtesy of GENERAL MOTORS CORP.
