Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assemblies. Refer to HEADLAMP REPLACEMENT (CHEVROLET)  or HEADLAMP REPLACEMENT (OLDSMOBILE)  or HEADLAMP REPLACEMENT (GMC)  in Lighting Systems.
  2. Remove the radiator baffle. Refer to AIR INTAKE BAFFLE REPLACEMENT - RADIATOR   .
  3. Release the tabs that retains the ambient temperature sensor to the headlamp panel assembly.
  4. Remove the bolts that retain the headlamp panel assembly to the body.
  5. Remove the headlamp panel assembly from the vehicle.

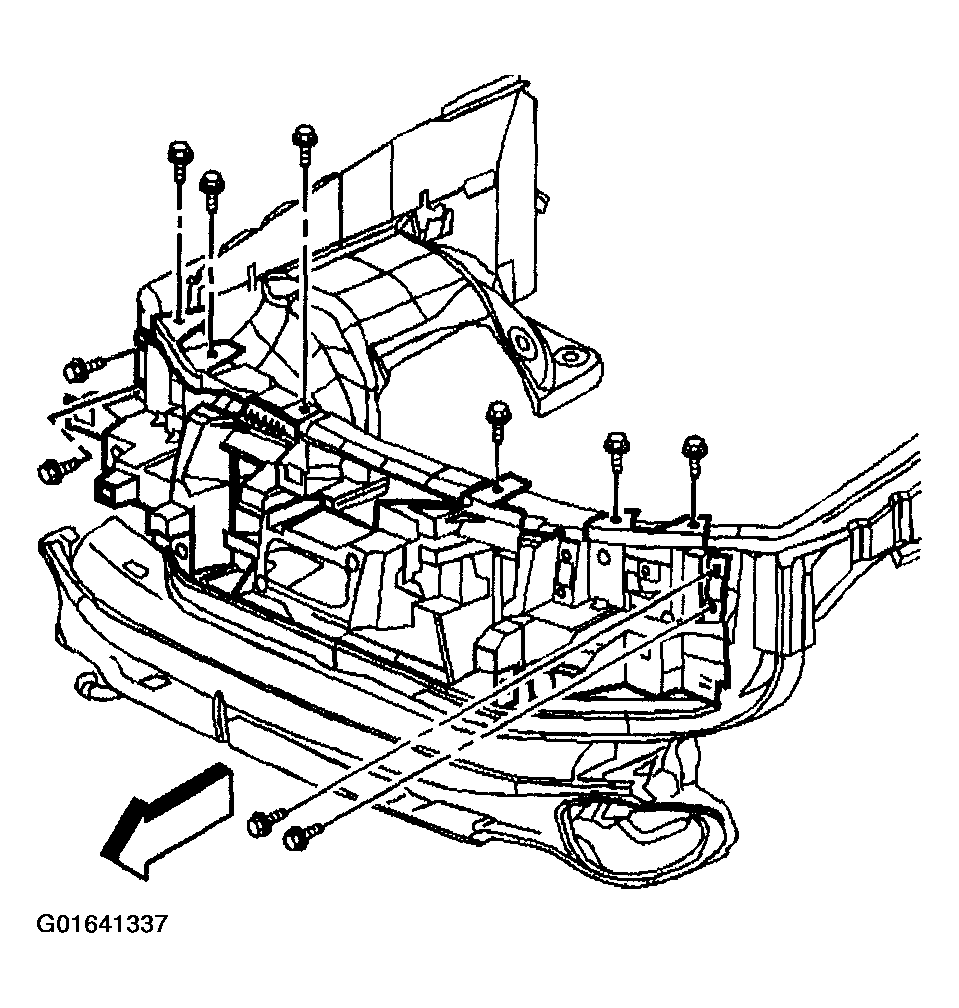

    Fig 1: Removing Bolts That Retain Headlamp Panel Assembly To Body
    G01641337Courtesy of GENERAL MOTORS CORP.
