Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the headlamp panel assembly to the vehicle.
  2. Feed the headlamp electrical connector through the access hole in the headlamp panel assembly.
  3. Feed the remaining headlamp harness connectors between the outer edge of the headlamp panel and the forward portion of the body.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the bolts that retain the headlamp panel assembly to the body.

    Tighten

    Tighten the bolts to 8 N.m (71 lb in).

  5. Install the ambient temperature sensor to the headlamp panel assembly, ensure the retaining tabs are fully seated.

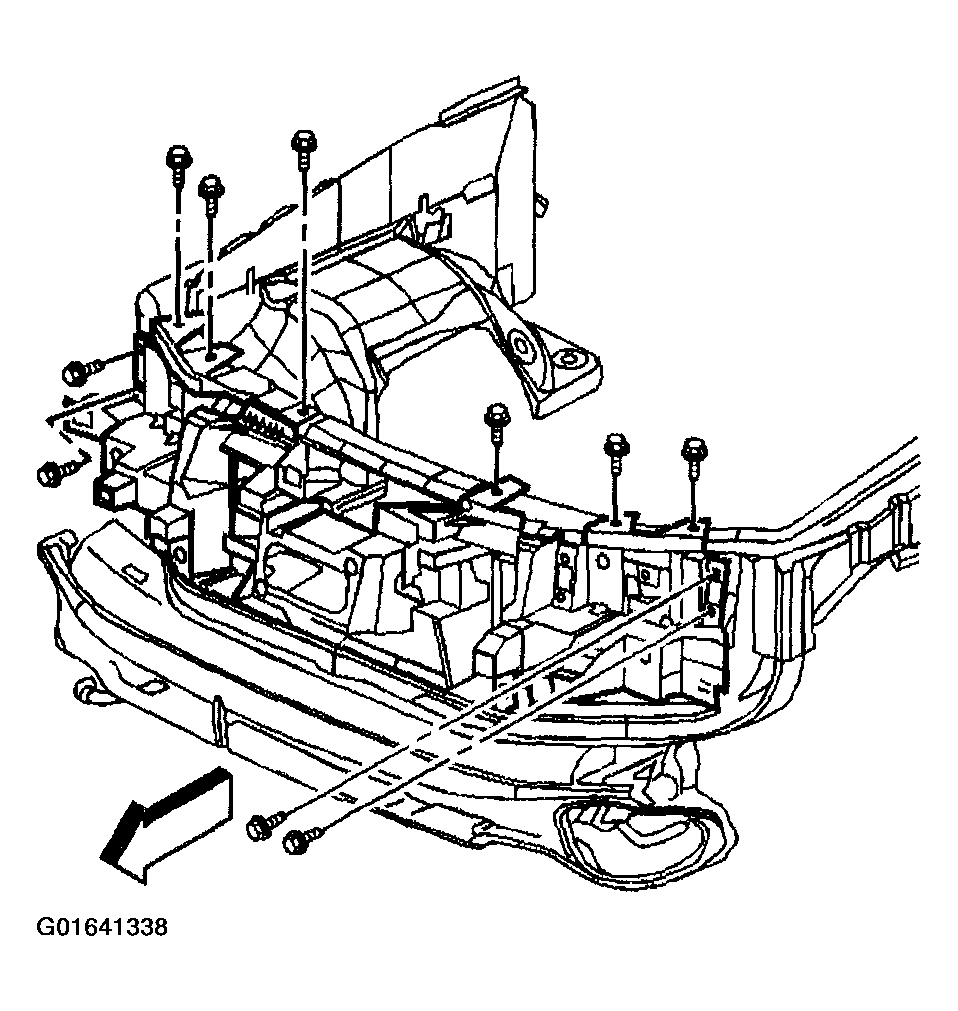

    Fig 1: Installing Bolts That Retain Headlamp Panel Assembly To Body
    G01641338Courtesy of GENERAL MOTORS CORP.
  6. Install the radiator baffle to the vehicle. Refer to AIR INTAKE BAFFLE REPLACEMENT - RADIATOR   .
  7. Install the headlamp assemblies. Refer to HEADLAMP REPLACEMENT (CHEVROLET)  or HEADLAMP REPLACEMENT (OLDSMOBILE)  or HEADLAMP REPLACEMENT (GMC)  in Lighting Systems.
