Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator support diagonal brace to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts that retain the radiator support diagonal brace to the radiator support.

    Tighten

    Tighten the radiator support diagonal brace to 25 N.m (18 lb ft).

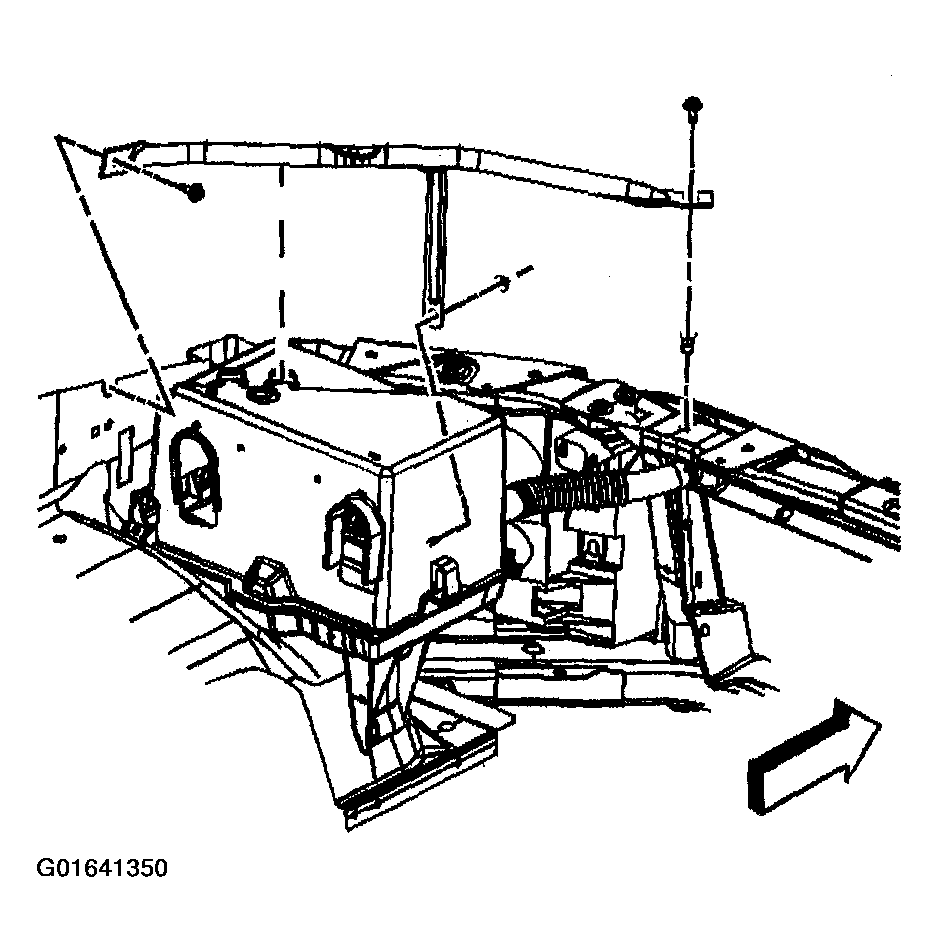

    Fig 1: Installing Radiator Support Diagonal Brace To Vehicle
    G01641350Courtesy of GENERAL MOTORS CORP.
