Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper arms. Refer to WIPER ARM REPLACEMENT  in Wiper/Washer Systems.
  2. Remove the inlet grille panel retaining nuts and push-pin retainers.
  3. Remove the inlet grill panel pushpin retainers.
  4. Disconnect the washer hose connection.
  5. Remove the inlet grille panel from the vehicle, by pulling upwards in order to disengage the retaining clips.
  6. Place the inlet grille panel on a clean, prepared surface.
  7. Remove the rear hood seal from the inlet grille panel studs.
  8. Remove the rear hood seal from the inlet grille panel.

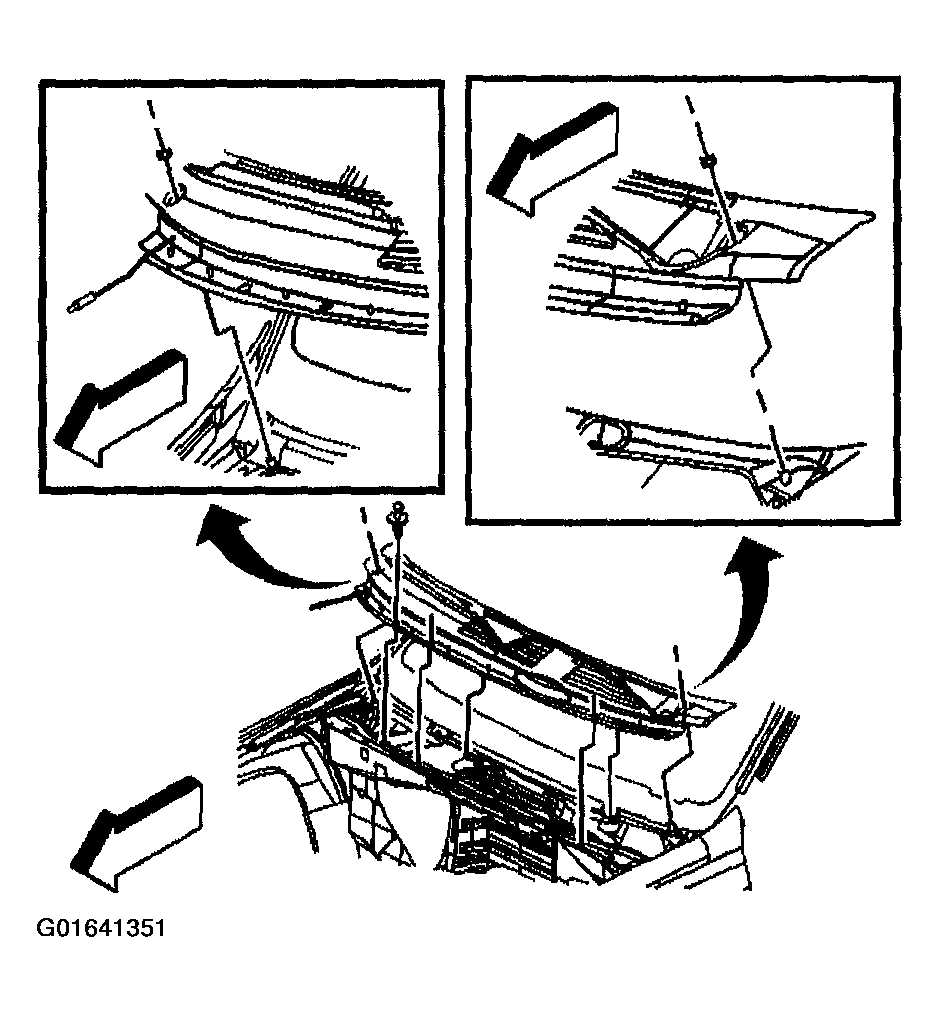

    Fig 1: Removing Rear Hood Seal From Inlet Grille Panel
    G01641351Courtesy of GENERAL MOTORS CORP.
