Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear hood seal to the inlet grille panel.
  2. Install the rear hood seal to the inlet grille panel studs.
  3. Position the inlet grille panel to the vehicle.
  4. Press the inlet grille panel downward in order to seat the retaining clips.
  5. Push downward on the inlet grille panel to seat the retaining clips.
  6. Connect the washer hose connection.
  7. Install the pushpin retainers.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  8. Install the inlet grille retaining nuts and push-pin retainers.

    Tighten

    Tighten the air inlet grille nuts to 4 N.m (35 lb in).

  9. Install the windshield wiper arms. Refer to WIPER ARM REPLACEMENT  in Wiper/Washer Systems.

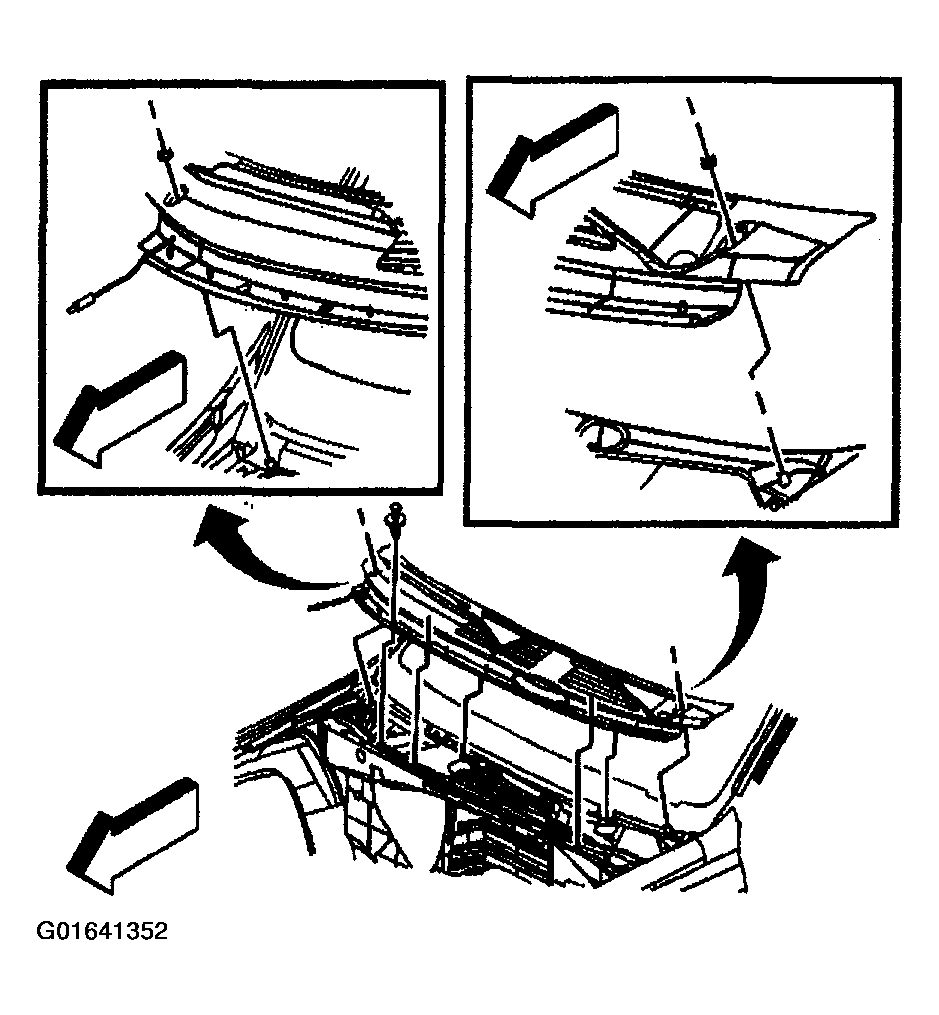

    Fig 1: Installing Rear Hood Seal To Inlet Grille Panel
    G01641352Courtesy of GENERAL MOTORS CORP.
