Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the backing from the adhesive strips.
  2. Position the step pad to the fascia.
  3. Install the step pad to the fascia, ensuring that the retaining tabs are thoroughly engaged, and the end of the step pad are secured.
  4. Close the liftgate.

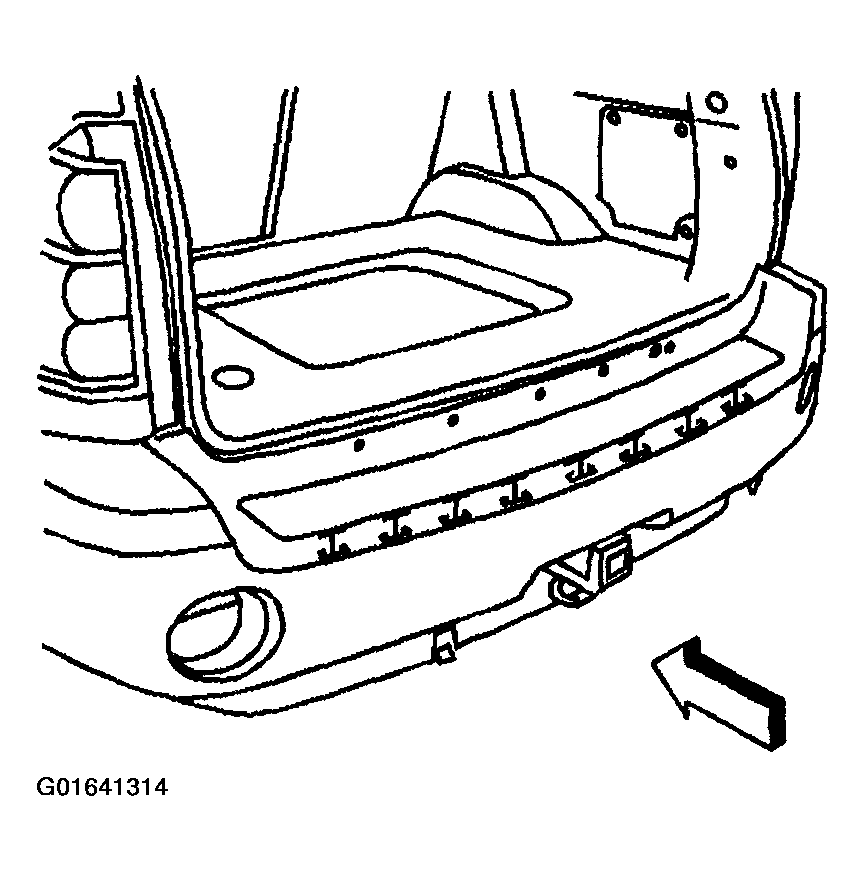

    Fig 1: Positioning Step Pad To Fascia
    G01641314Courtesy of GENERAL MOTORS CORP.
