Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER (CHEVROLET, GMC)   or FASCIA REPLACEMENT - FRONT BUMPER (OLDSMOBILE)   .
  2. Remove the bolts (1) that retain the fascia support rods (2) to the impact bar (5).
  3. Remove the fascia support rods from the impact bar.

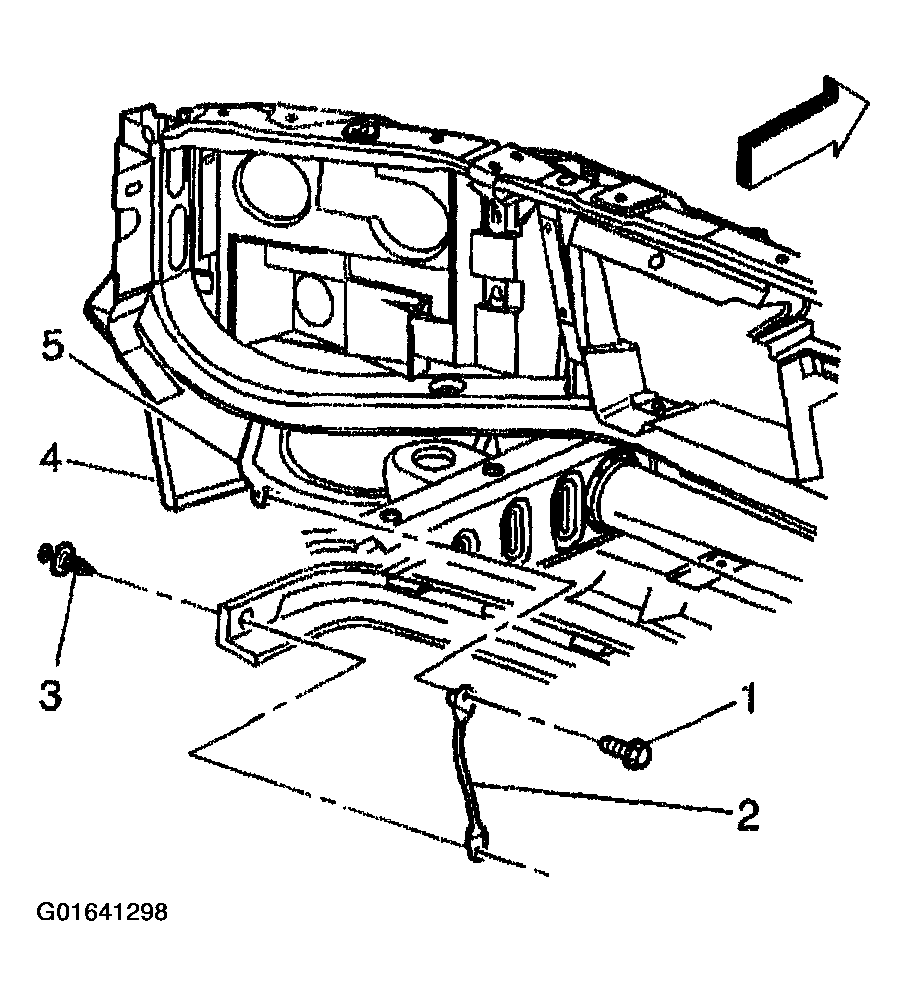

    Fig 1: Removing Fascia Support Rods From Impact Bar
    G01641298Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts (1) that retain the impact bar to the frame (2).
  5. Remove the impact bar (3) from the frame.
  6. Remove the tow hooks from the impact bar.

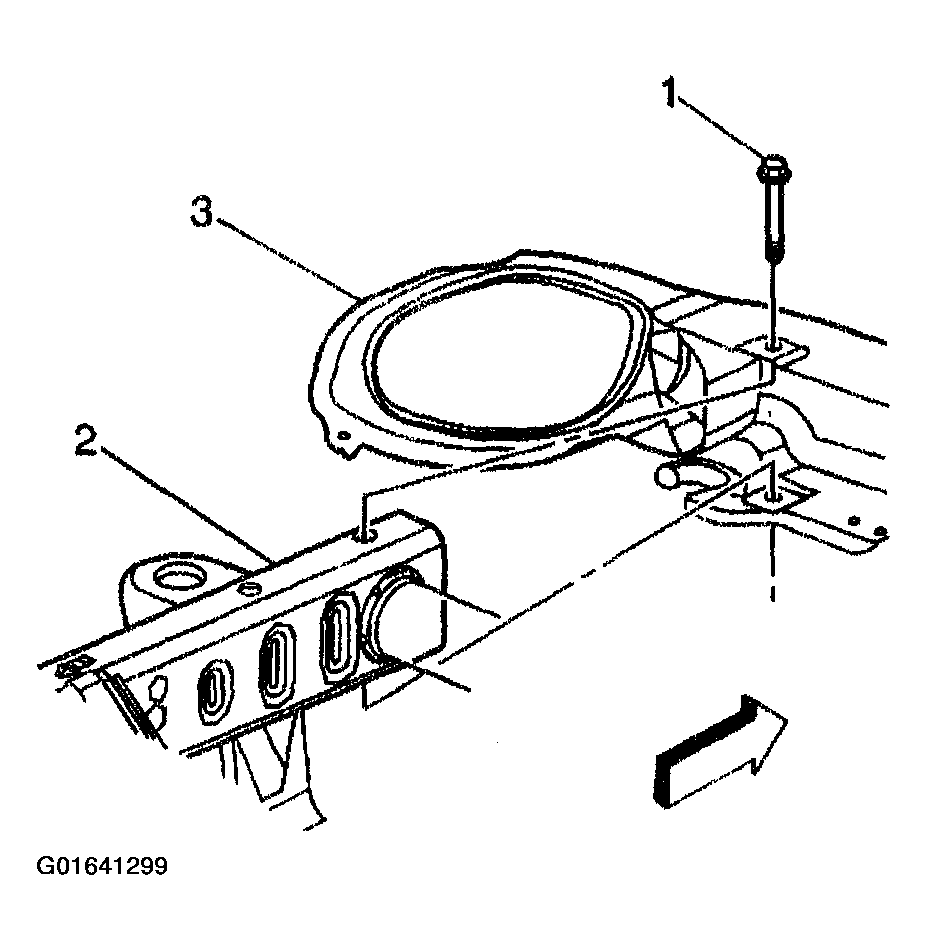

    Fig 2: Removing Impact Bar From Frame
    G01641299Courtesy of GENERAL MOTORS CORP.
