Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the tow hooks to the impact bar.
  2. Position the impact bar (3) to the frame (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the bolts (1) that retain the impact bar to the frame.

    Tighten

    Tighten the bolts to 85 N.m (63 lb ft).

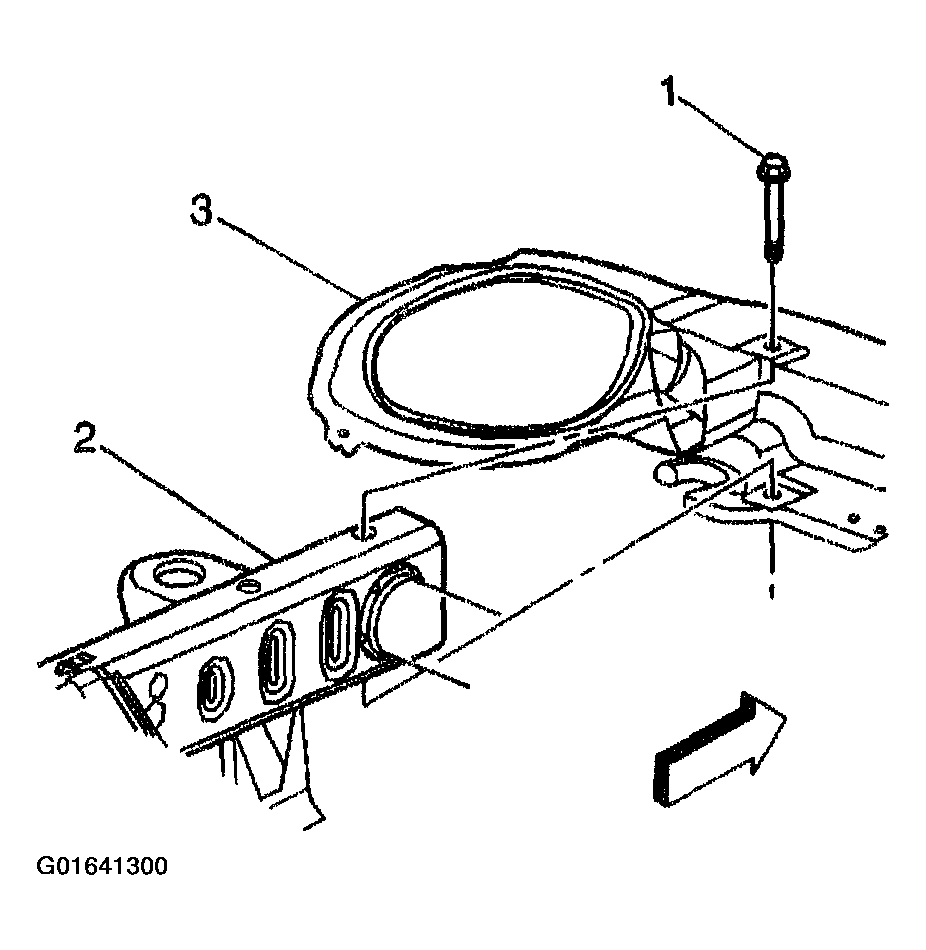

    Fig 1: Installing Bolts That Retain Impact Bar To Frame
    G01641300Courtesy of GENERAL MOTORS CORP.
  4. Position the fascia support rods (2) to the impact bar (5).
  5. Install the bolts (2) which retain the fascia support rods to the impact bar.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  6. Install the front fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER (CHEVROLET, GMC)   or FASCIA REPLACEMENT - FRONT BUMPER (OLDSMOBILE)   .
    Fig 2: Installing Bolts That Retain Fascia Support Rods To Impact Bar
    G01641301Courtesy of GENERAL MOTORS CORP.
