Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the backup lamp socket assemblies from the backup lamp housings. Refer to BACKUP LAMP REPLACEMENT (GMC) in Lighting Systems.
Remove the lower fascia push-pins.

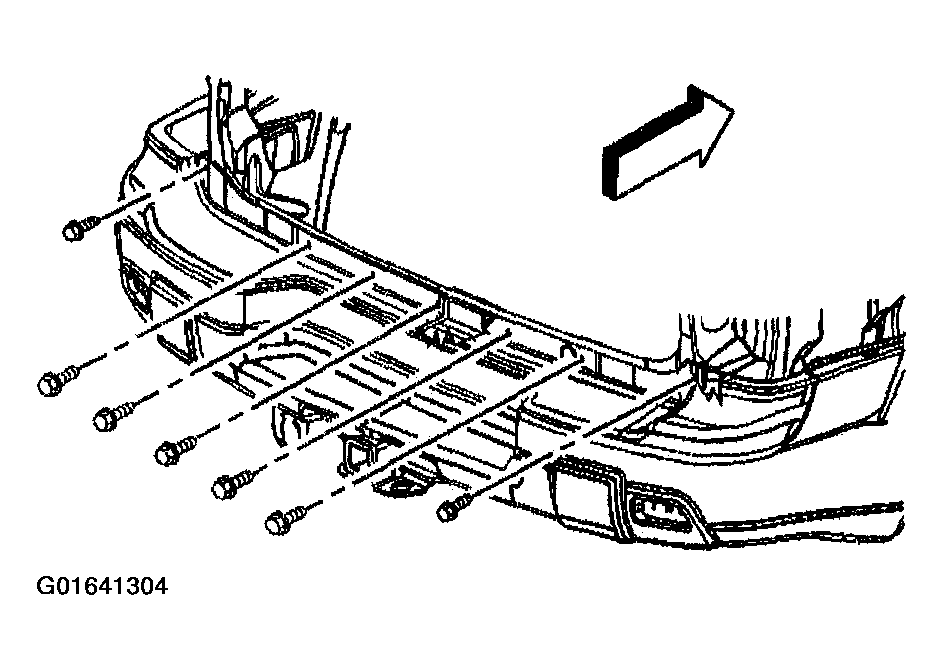

Fig 1: Removing Lower Fascia Push-Pins
Courtesy of GENERAL MOTORS CORP.
Remove the screws from the rear wheelhouse flanges.

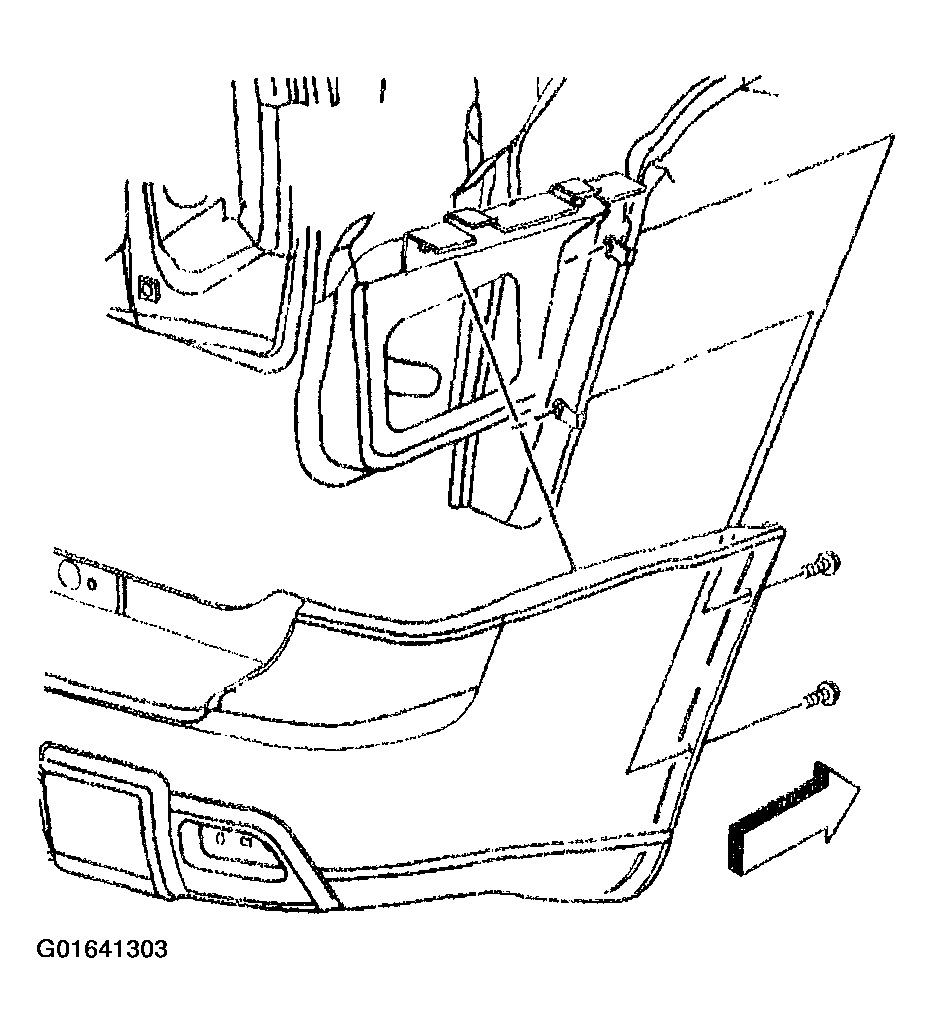

Fig 2: Removing Screws From Rear Wheelhouse Flanges
Courtesy of GENERAL MOTORS CORP.
Remove the upper retaining bolts from the back of the fascia.
Remove the fascia from the vehicle.

Fig 3: Removing Upper Retaining Bolts From Back Of Fascia
Courtesy of GENERAL MOTORS CORP.
