Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille. Refer to GRILLE REPLACEMENT (GMC)  or GRILLE REPLACEMENT (OLDSMOBILE)  or GRILLE REPLACEMENT (CHEVROLET)  in Exterior Trim.
  2. Remove the 2 bolts that retains the top of the fascia to the headlamp panel assembly.

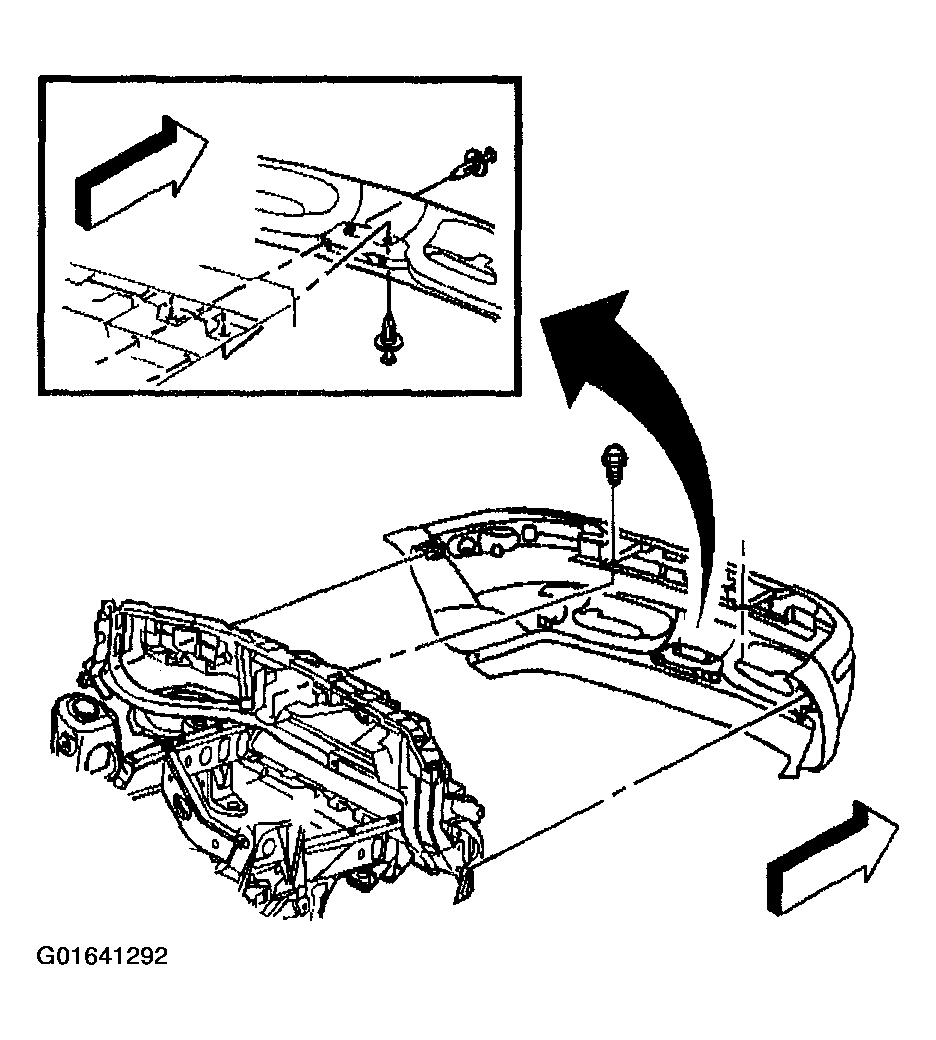

    Fig 1: Removing Bolts That Retain Top Of Fascia To Headlamp Panel Assembly
    G01641292Courtesy of GENERAL MOTORS CORP.
  3. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  4. Remove the push-pins (3) that retain the fascia to the fascia support rods (2).
    Fig 2: Removing Push-Pins That Retain Fascia To Fascia Support Rods
    G01641293Courtesy of GENERAL MOTORS CORP.
  5. Remove the fog lamps from the fascia. Refer to FOG LAMP REPLACEMENT - FRONT (GMC/CHEVROLET)  or FOG LAMP REPLACEMENT - FRONT (OLDSMOBILE)  in Lighting Systems.
  6. Remove the cornering lamps from the fascia. Refer to CORNERING LAMP REPLACEMENT (GMC/OLDSMOBILE)  in Lighting Systems.
  7. Remove the air deflector from the fascia. Refer to AIR DEFLECTOR REPLACEMENT - FRONT BUMPER FASCIA   .
  8. Remove the 4 push-pins that retain the bottom of the fascia to the air dam.
  9. Release the body side attachment tabs and pull the fascia straight forward from the wheelhouse opening in order to remove the fascia from the vehicle.
    Fig 3: Removing Push-Pins That Retain Bottom Of Fascia To Air Dam
    G01641294Courtesy of GENERAL MOTORS CORP.
