Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fascia to the vehicle, ensuring that the body side attachment tabs are fully seated.
  2. Install the 4 push-pins that retain the bottom of the fascia to the air dam.

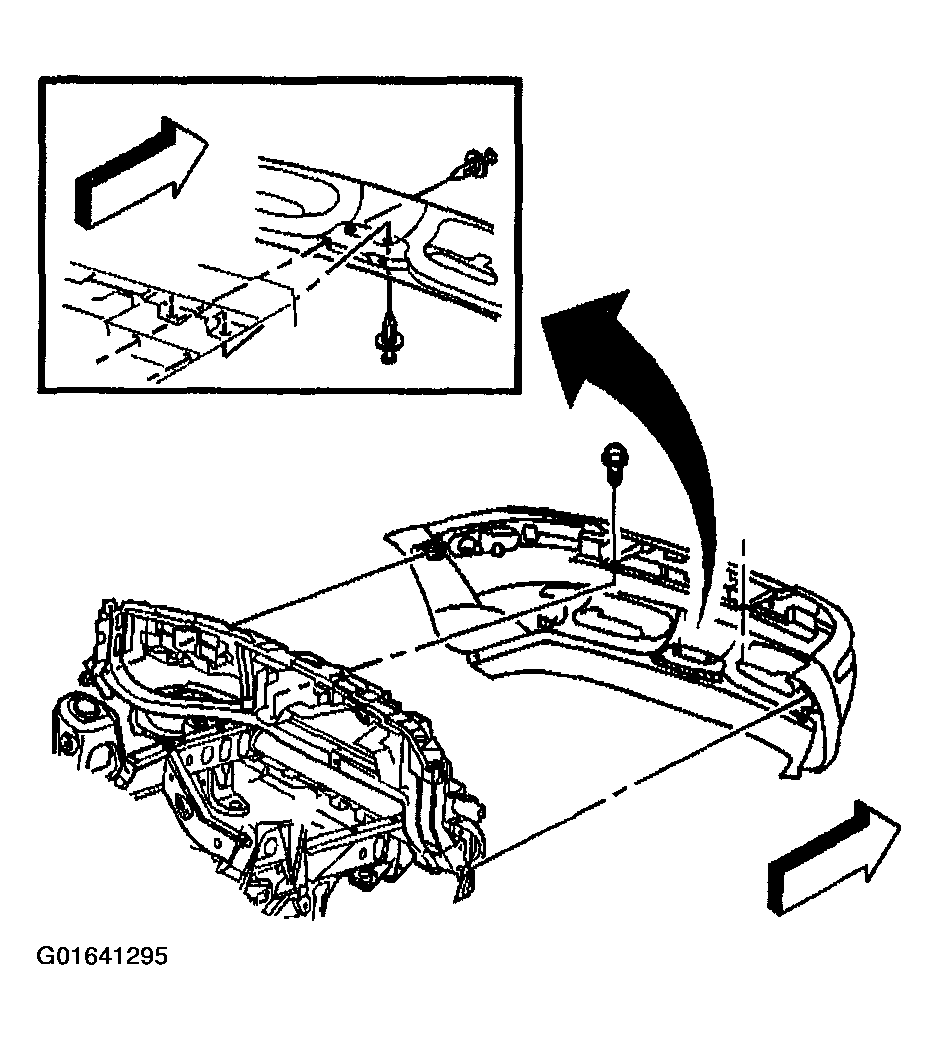

    Fig 1: Installing Push-Pins That Retain Bottom Of Fascia To Air Dam
    G01641295Courtesy of GENERAL MOTORS CORP.
  3. Install the push-pins (3) that retain the fascia to the fascia support rods (2).

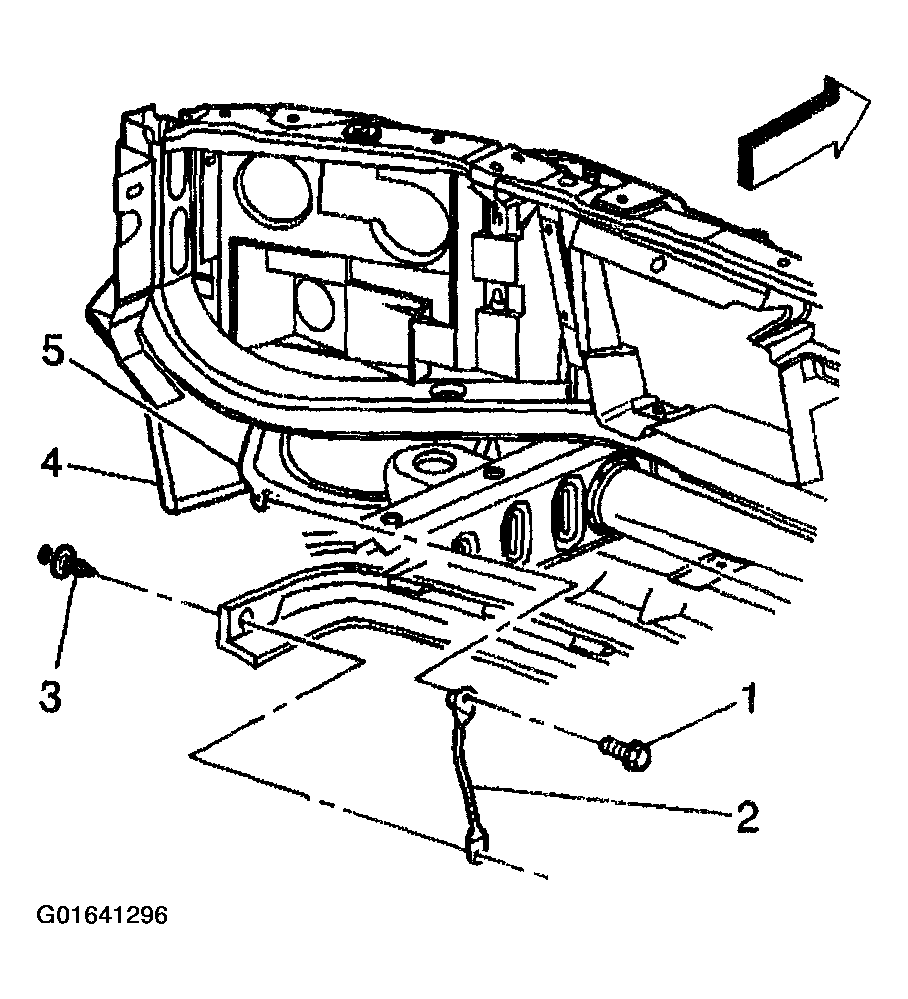

    Fig 2: Installing Push-Pins That Retain Fascia To Fascia Support Rods
    G01641296Courtesy of GENERAL MOTORS CORP.
  4. Install the air deflector to the fascia. Refer to AIR DEFLECTOR REPLACEMENT - FRONT BUMPER FASCIA   .
  5. Install the cornering lamps. Refer to CORNERING LAMP REPLACEMENT (GMC/OLDSMOBILE)  in Lighting Systems.
  6. Install the fog lamps. Refer to FOG LAMP REPLACEMENT - FRONT (GMC/CHEVROLET)  or FOG LAMP REPLACEMENT - FRONT (OLDSMOBILE)  in Lighting Systems.
  7. Lower the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  8. Install the 2 bolts that retain the top of the fascia to the headlamp panel assembly.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  9. Install the grille. Refer to GRILLE REPLACEMENT (GMC)  or GRILLE REPLACEMENT (OLDSMOBILE)  or GRILLE REPLACEMENT (CHEVROLET)  in Exterior Trim.

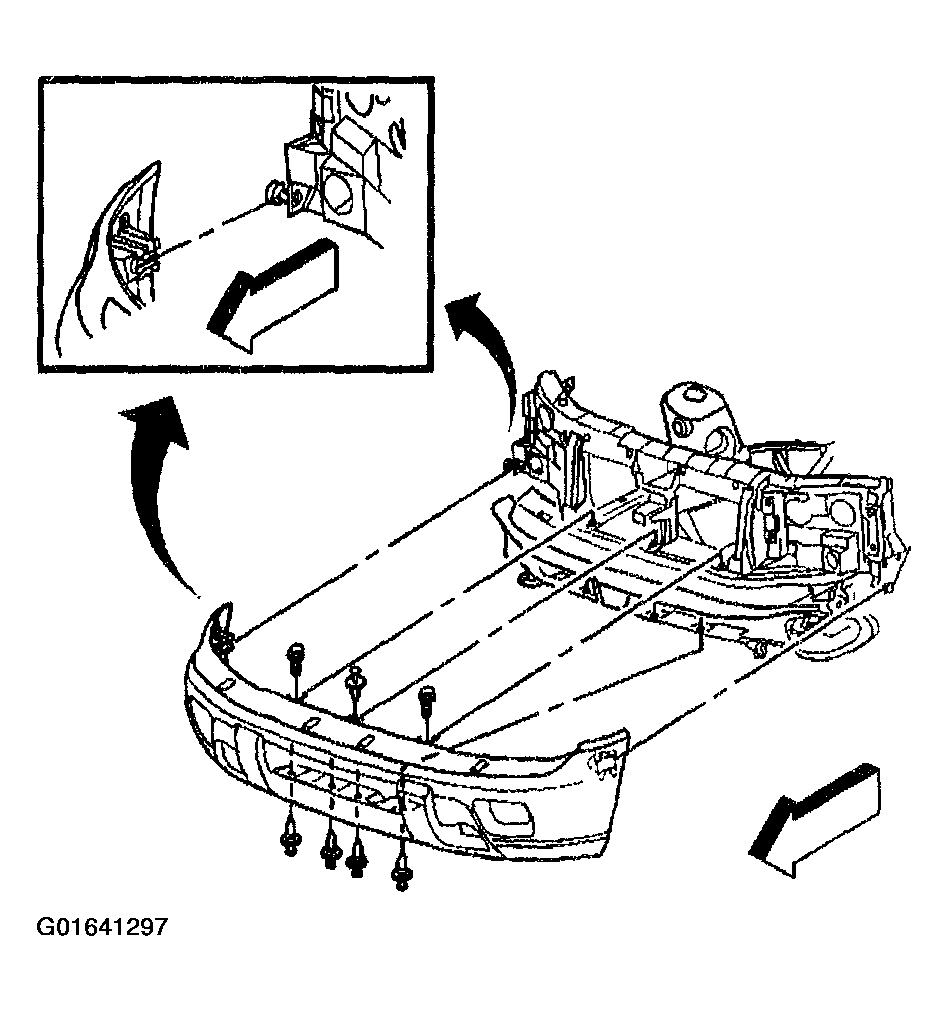

    Fig 3: Installing Bolts That Retain Top Of Fascia To Headlamp Panel Assembly
    G01641297Courtesy of GENERAL MOTORS CORP.
