Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the tabs that retain the air deflector to the fascia.
  2. Remove the push-pin retaining the air deflector to the fascia.
  3. Remove the air deflector from the fascia.

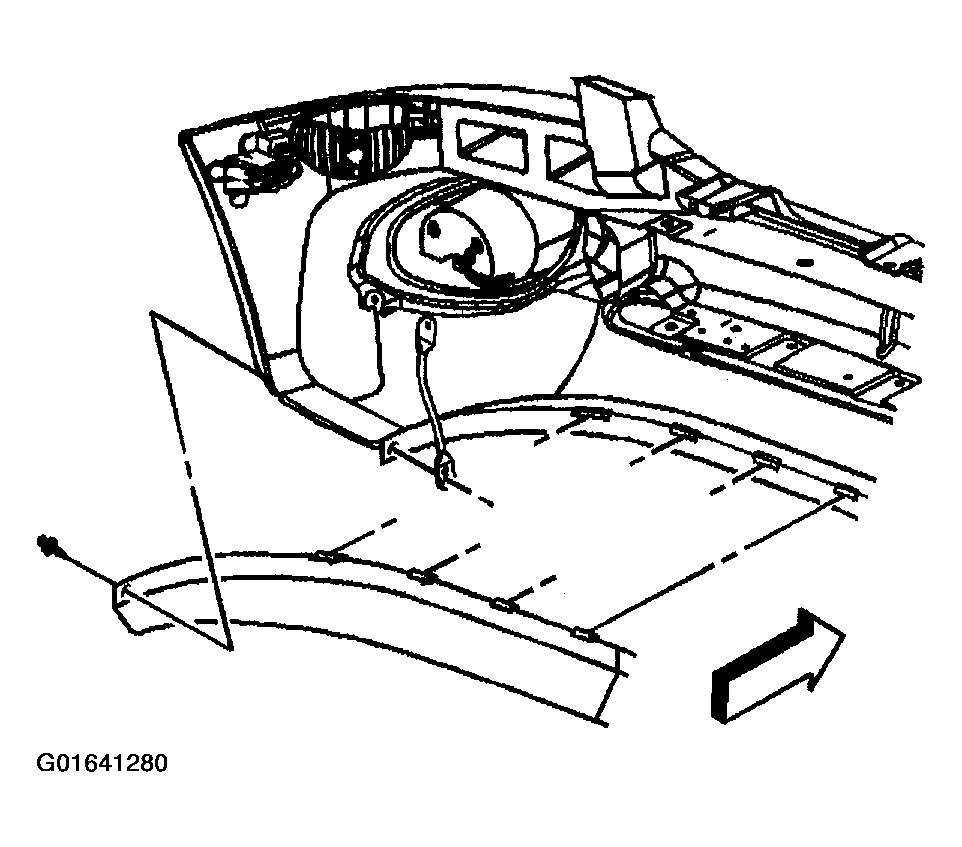

    Fig 1: Removing Air Deflector From Fascia
    G01641280Courtesy of GENERAL MOTORS CORP.
