Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the air deflector to the impact bar.
Insert the tabs on the air deflector to the slots in the impact bar.
Install the impact bar. Refer to IMPACT BAR REPLACEMENT - FRONT BUMPER .
Install the fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER (CHEVROLET, GMC) or FASCIA REPLACEMENT - FRONT BUMPER (OLDSMOBILE) .

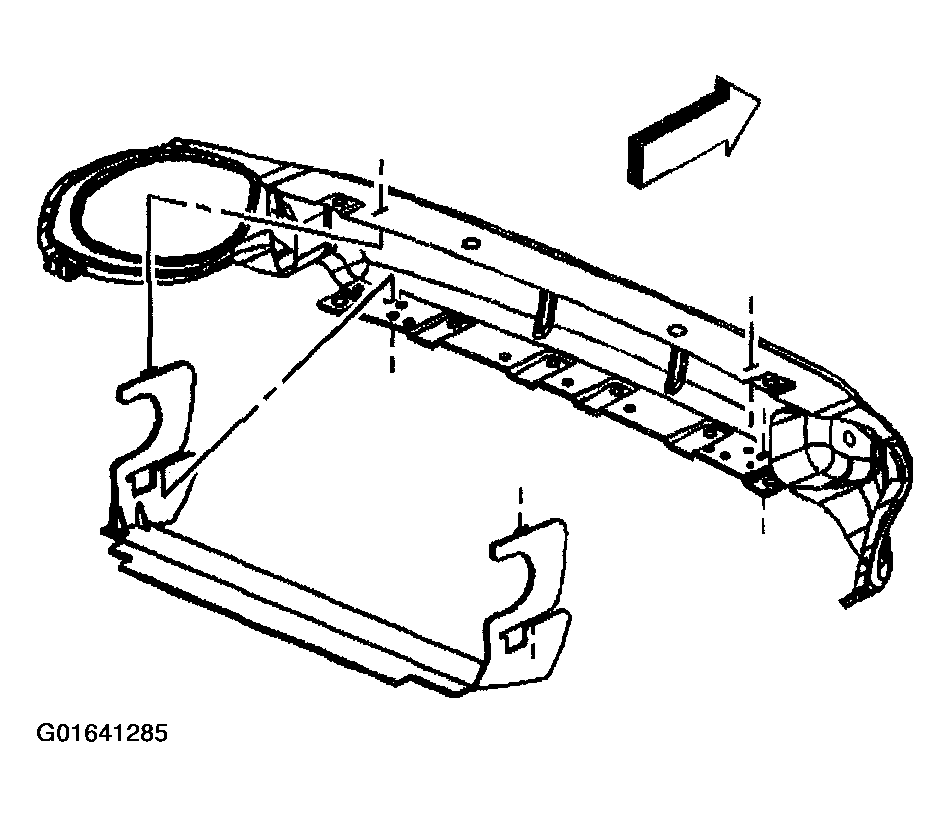

Fig 1: Installing Air Deflector To Impact Bar (Chevrolet, GMC)
Courtesy of GENERAL MOTORS CORP.
