Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the windshield reveal molding.
Install the weatherstrip side retainer (2) to the windshield pillar.

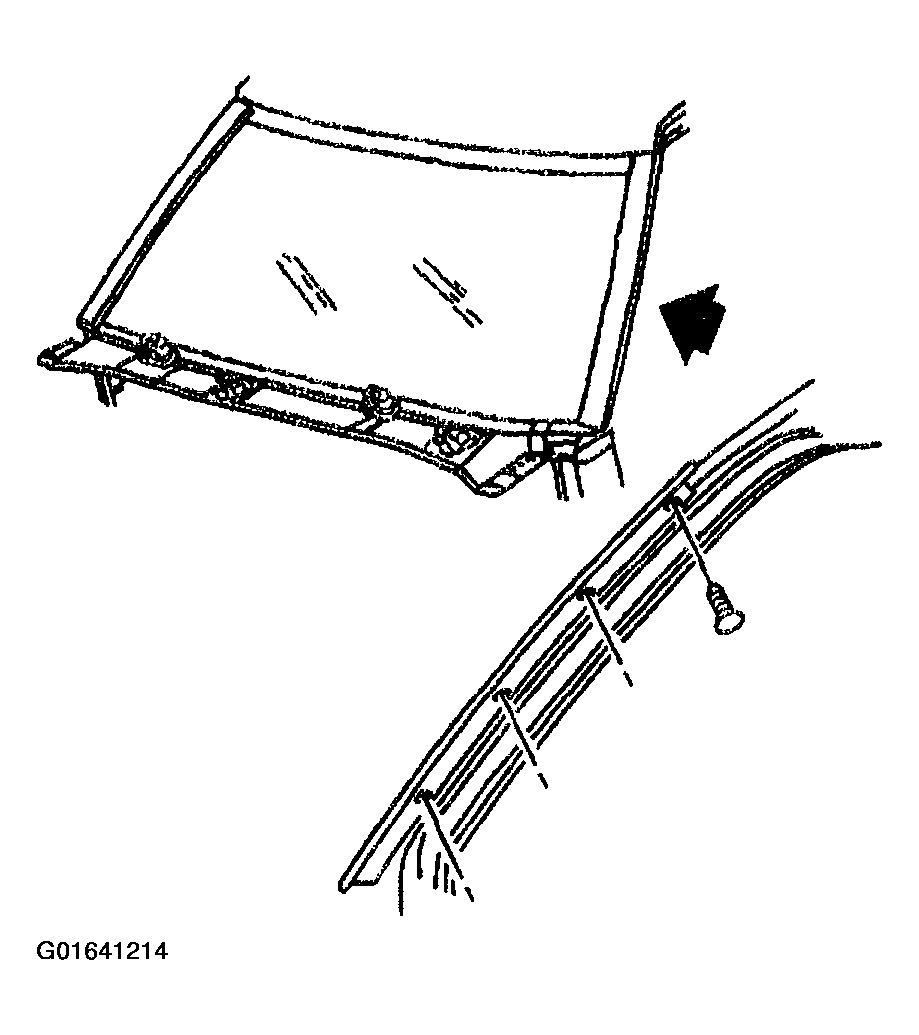

Fig 1: Installing Windshield Reveal Molding
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the screws to the weatherstrip side retainer.
Tighten

Tighten the screws to the weatherstrip side retainer to 2 N.m (18 lb in).

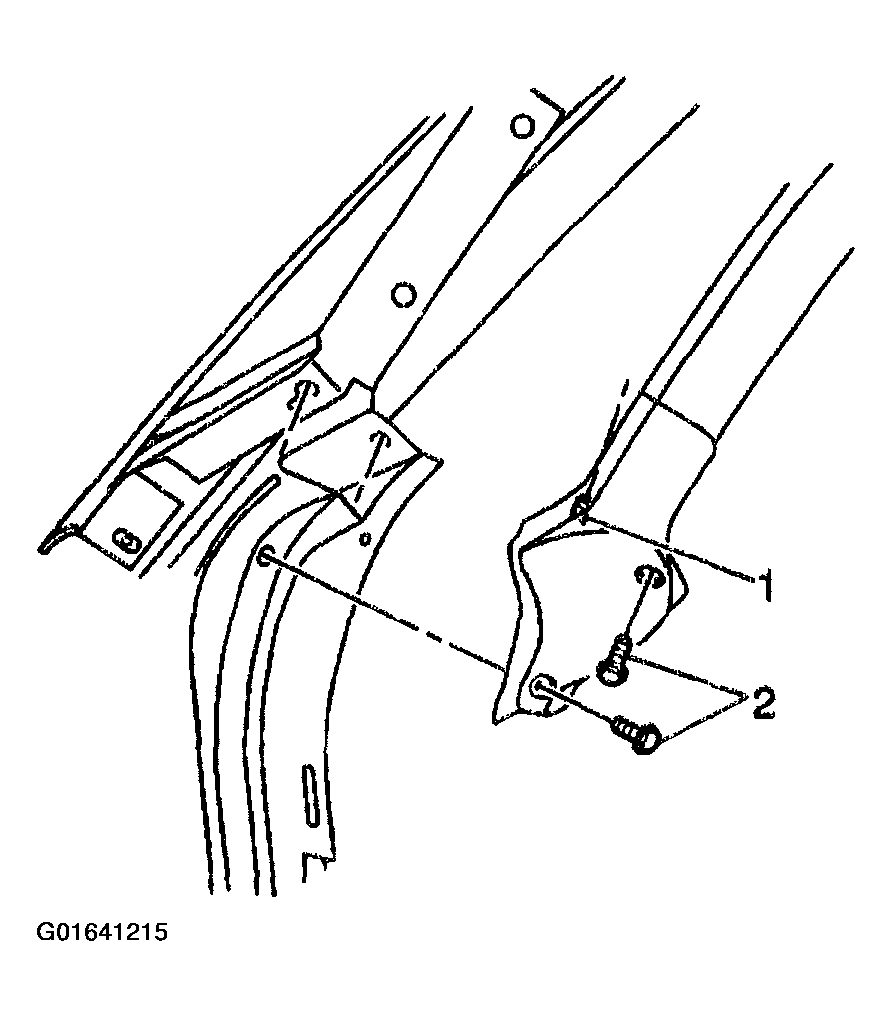

Fig 2: Installing Screws To Weatherstrip Side Retainer
Courtesy of GENERAL MOTORS CORP.
Install the push pin retainers (2) to the front door sealing weatherstrip located at the base of the pillar.
Close the door.

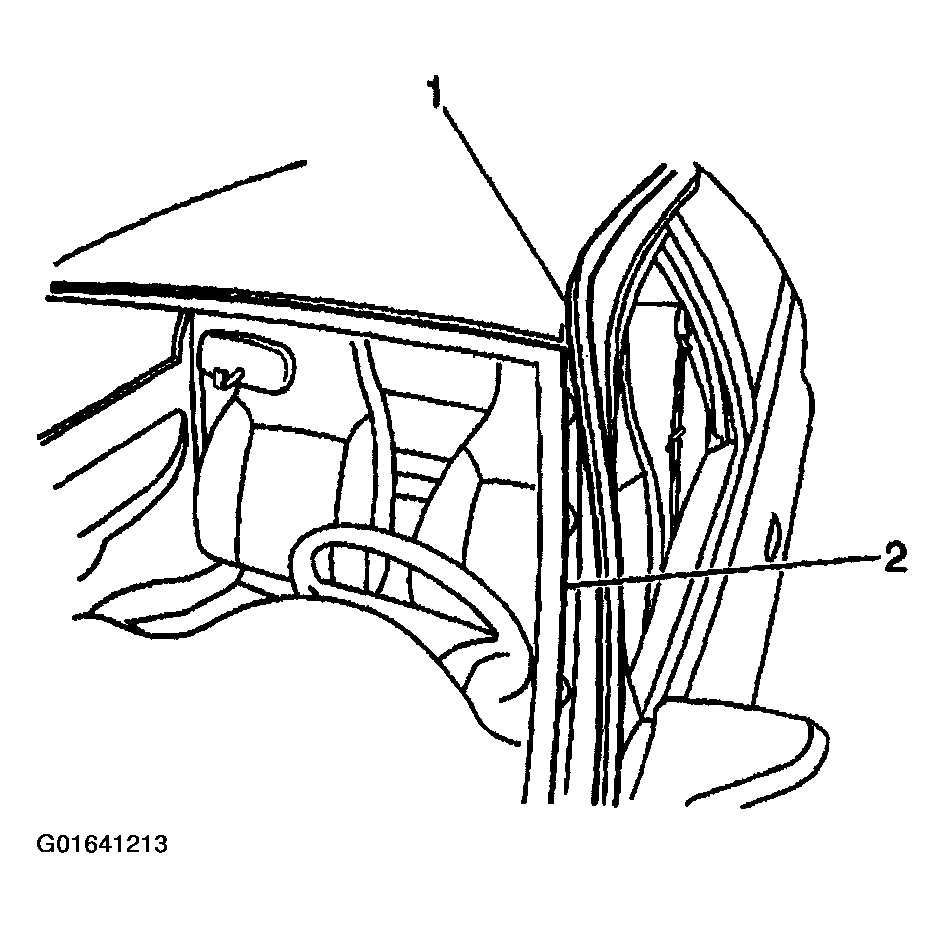

Fig 3: Installing Push Pin Retainers To Front Door Sealing Weatherstrip
Courtesy of GENERAL MOTORS CORP.
