Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Use a flat-bladed tool in order to remove the wire connector (1) from the mirror (2), if equipped.
Using a Torx® screwdriver, loosen the set screw that holds the mirror base to the windshield button.

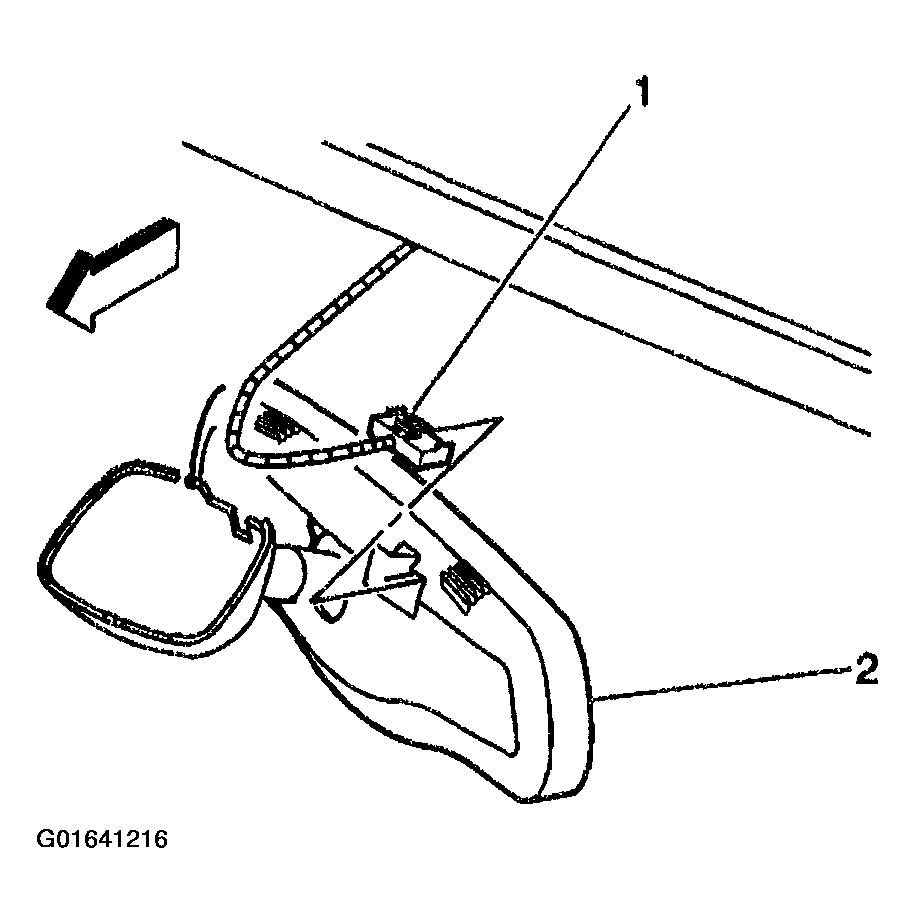

Fig 1: Removing Wire Connector From The Mirror
Courtesy of GENERAL MOTORS CORP.
Slide the mirror off of the support.

Fig 2: Sliding Mirror Off Of Support
Courtesy of GENERAL MOTORS CORP.
