Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Slide the mirror onto the support.

Fig 1: Sliding Mirror Onto Support
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the set screw.
Tighten

Tighten the set screw to 2 N.m (18 lb in).
Connect the electrical connector (1), if equipped.

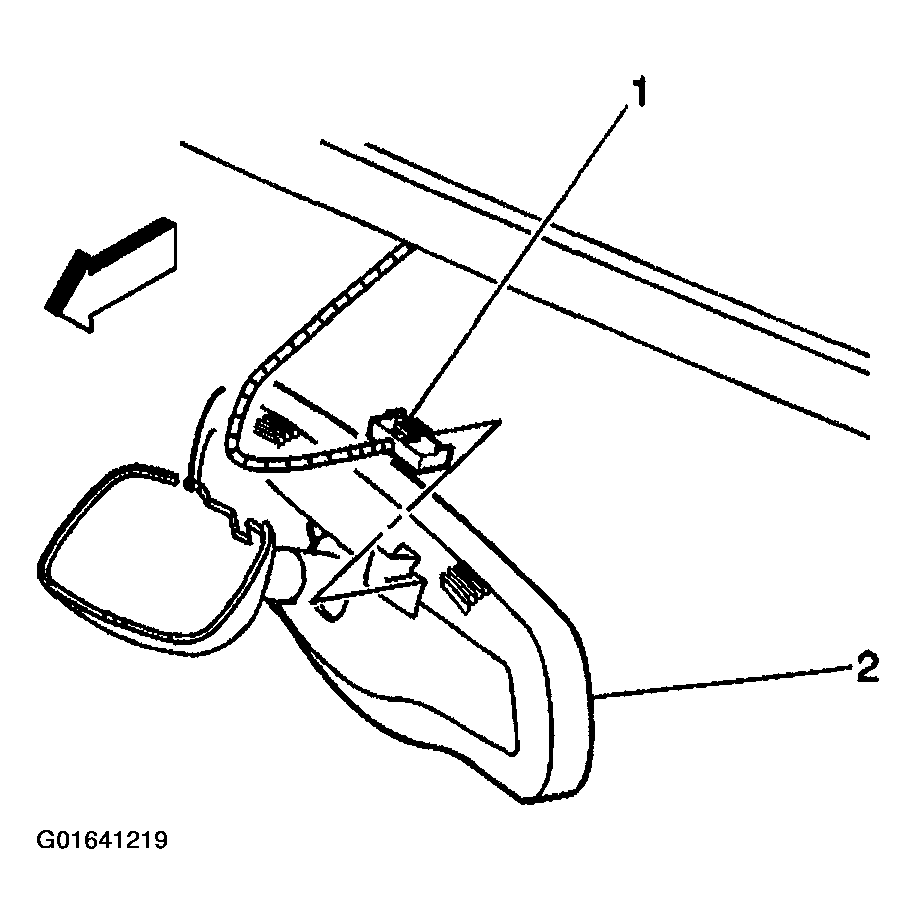

Fig 2: Connecting Electrical Connector
Courtesy of GENERAL MOTORS CORP.
