Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If a window is cracked but still Intact, crisscross the window with masking tape in order to reduce the risk of damage or personal injury.
IMPORTANT: Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
  1. Open the liftgate.
  2. Remove the upper quarter trim. Refer to INTERIOR TRIM  in Interior Trim.
    CAUTION: Refer to Glass and Sheet Metal Handling Caution in Cautions and Notices.
    IMPORTANT: Keep the cutting edge of the tool against the window. Do this from inside the vehicle.
  3. This will allow the urethane adhesive to be separated from the window.
    • Leave a base of urethane on the pinchweld flange.
    • The only suitable lubrication is clear water.
    • Use J 39032  or equivalent in order to remove the window.
  4. If the original reveal molding on the quarter window is damaged it must be replaced.
  5. With the aid of an assistant, remove the quarter window from the opening.

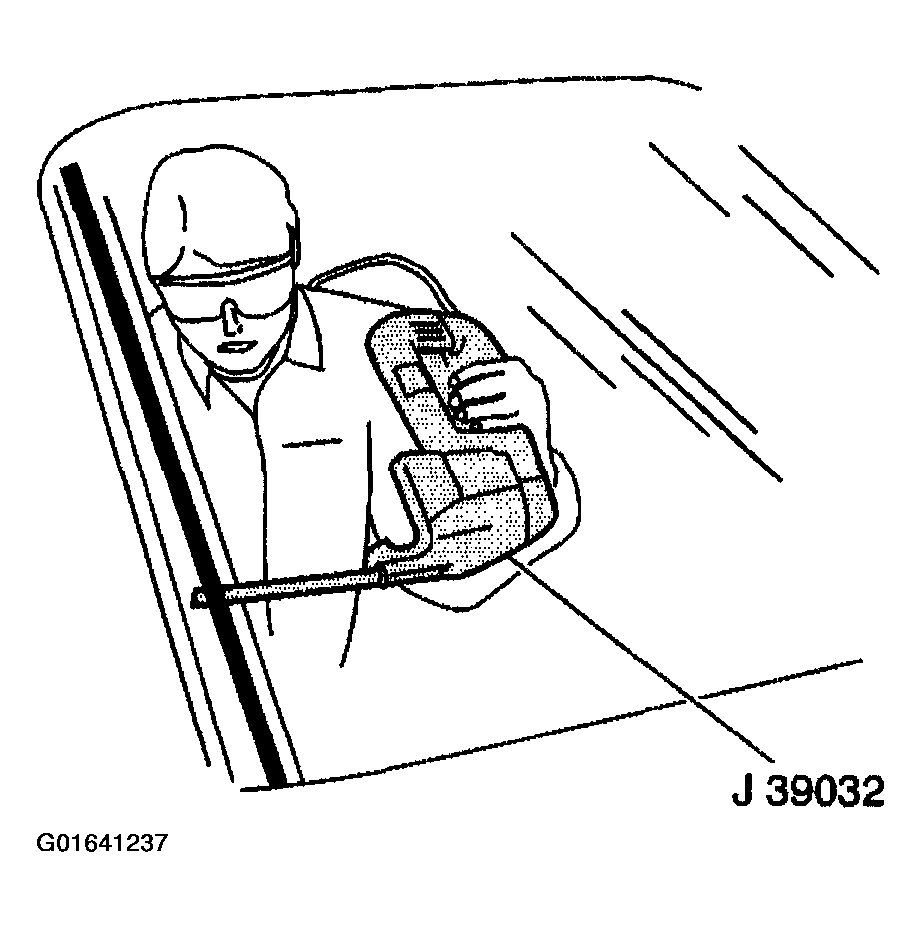

    Fig 1: Cutting Out Stationary Window
    G01641237Courtesy of GENERAL MOTORS CORP.
