Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front grille. Refer to GRILLE REPLACEMENT (GMC)  or GRILLE REPLACEMENT (OLDSMOBILE)  or GRILLE REPLACEMENT (CHEVROLET)  in Exterior Trim.
  2. Remove the sensor (1) from the panel assembly (2).

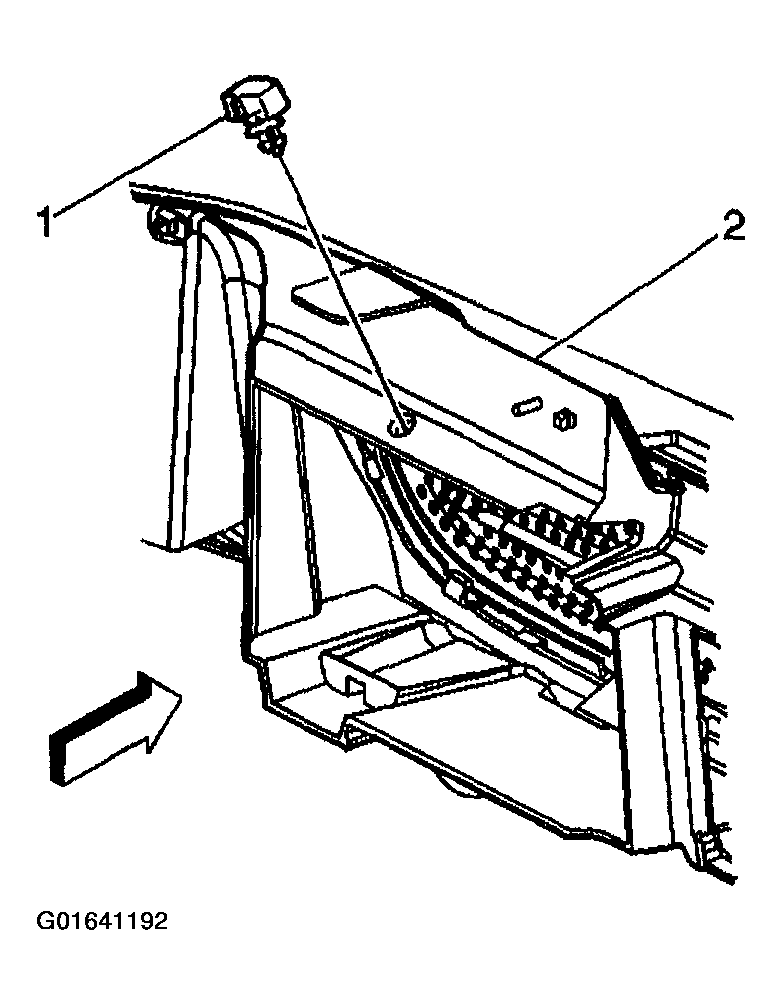

    Fig 1: Removing Sensor From Panel Assembly
    G01641192Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the sensor (1).

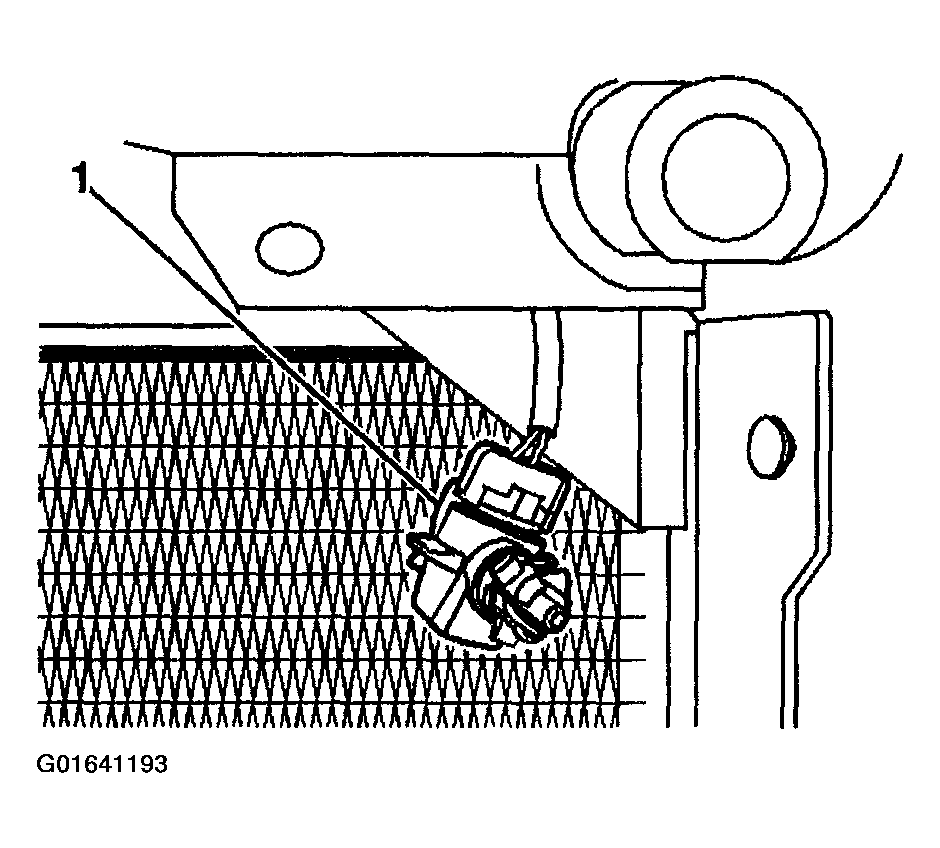

    Fig 2: Disconnecting Electrical Connector From Sensor
    G01641193Courtesy of GENERAL MOTORS CORP.
