Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sensor to the panel assembly.
  2. Connect the electrical connector to the sensor (1).

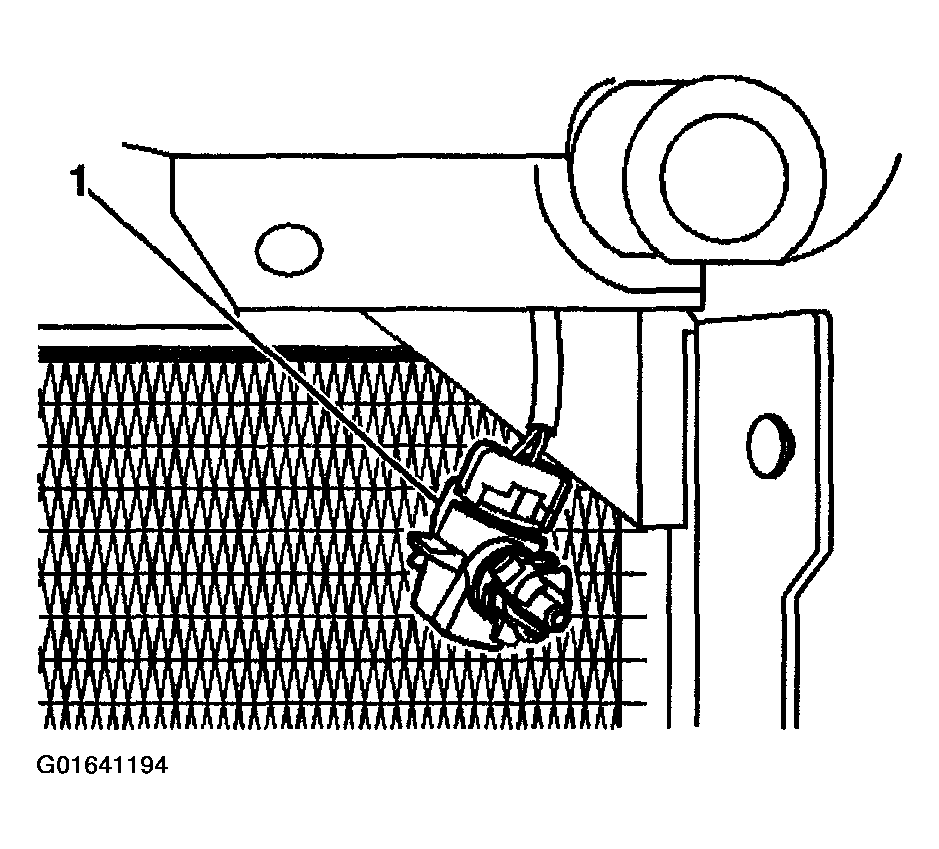

    Fig 1: Connecting Electrical Connector To Sensor
    G01641194Courtesy of GENERAL MOTORS CORP.
  3. Install the sensor (1) to the panel assembly (2).
  4. Install the front grille. Refer to GRILLE REPLACEMENT (GMC)  or GRILLE REPLACEMENT (OLDSMOBILE)  or GRILLE REPLACEMENT (CHEVROLET)  in Exterior Trim.

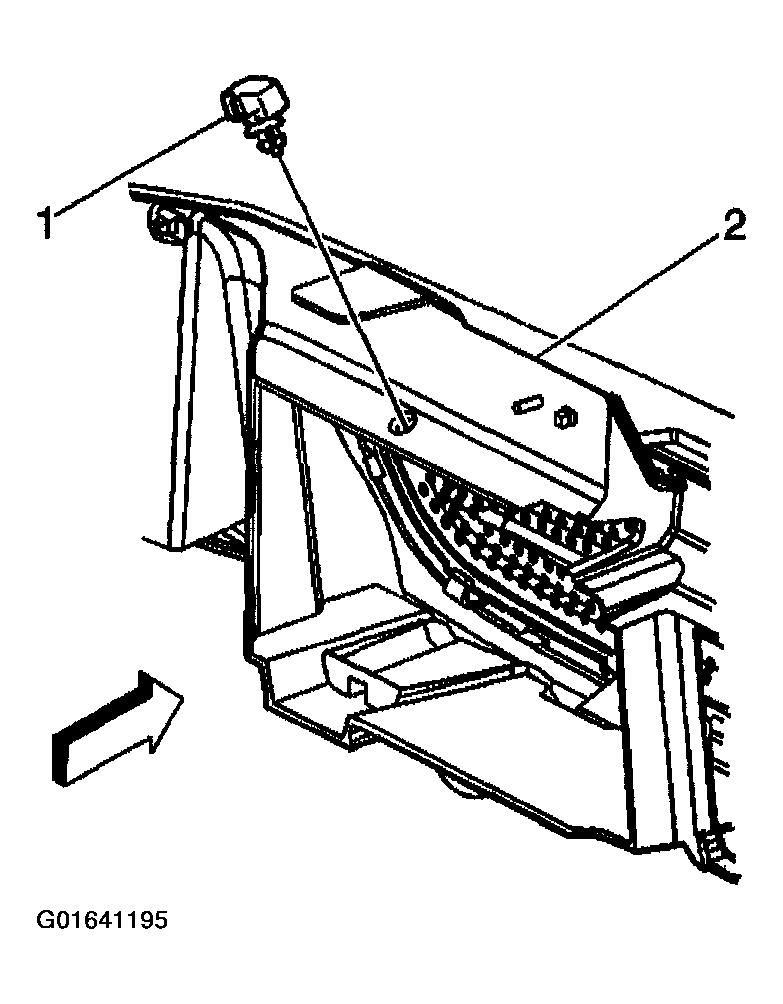

    Fig 2: Installing Sensor To Panel Assembly
    G01641195Courtesy of GENERAL MOTORS CORP.
