Conditions for Clearing the DTC: B0283

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: DTC B0283 - Diagnostic Chart (1 Of 2)
G01641180Courtesy of GENERAL MOTORS CORP.

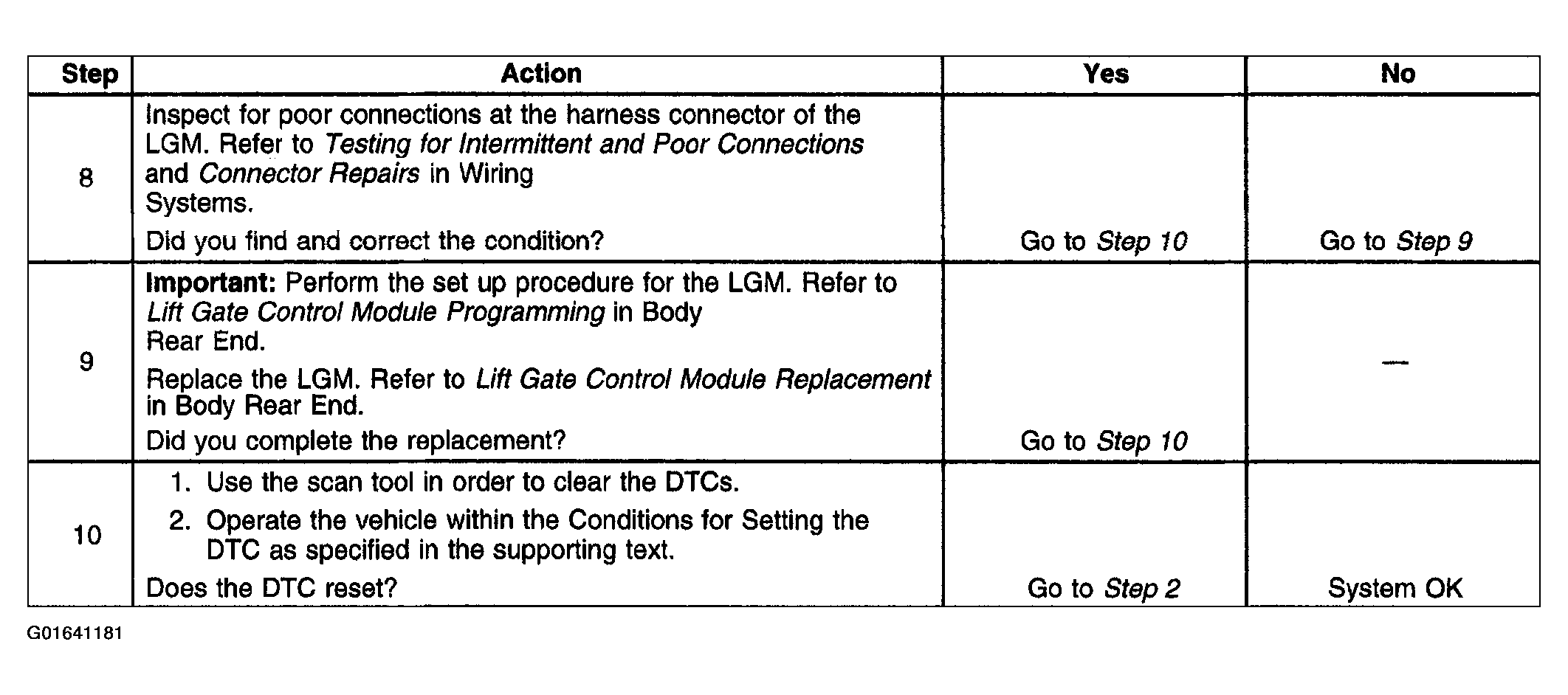

Fig 2: DTC B0283 - Diagnostic Chart (2 Of 2)
G01641181Courtesy of GENERAL MOTORS CORP.
