Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rocker panel assembly. Refer to MOLDING REPLACEMENT - ROCKER PANEL (TRAILBLAZER EXT, ENVOY XL)   or MOLDING REPLACEMENT - ROCKER PANEL (TRAILBLAZER, ENVOY, BRAVADA)   .
  2. Remove the door opening screws (1) from front of rocker panel rear molding.
  3. Release push-in retainers (2) using a trim removal tool.
    NOTE: Use a plastic, flat-bladed tool to prevent paint damage when removing an emblem/name plate.
  4. Remove the rocker panel molding from the rocker panel.

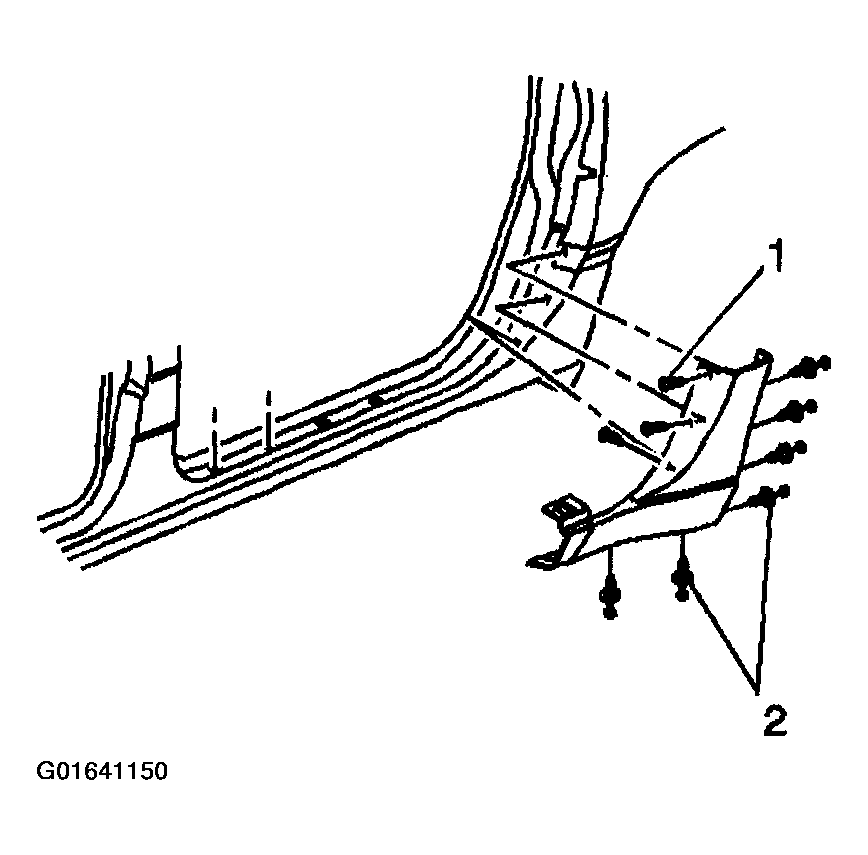

    Fig 1: Removing Rocker Panel Molding From Rocker Panel
    G01641150Courtesy of GENERAL MOTORS CORP.
