Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rocker molding to the holes in the rocker panel.
    NOTE: Refer to Fastener Notice   in Cautions and Notices.
  2. Install the door opening screws (1).

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

  3. Install push-in retainers

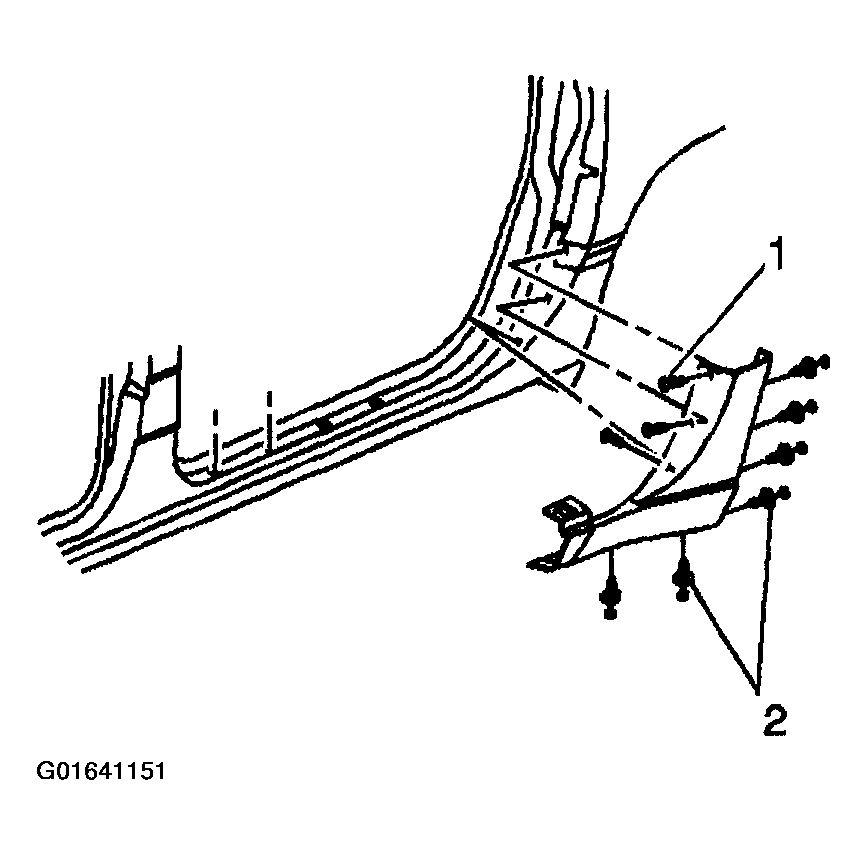

    Fig 1: Positioning Rocker Molding To Holes In Rocker Panel
    G01641151Courtesy of GENERAL MOTORS CORP.
