Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front rocker molding scuff plate. Refer to ROCKER MOLDING SCUFF PLATE REPLACEMENT - FRONT   .
  2. Remove the rear rocker molding scuff plate. Refer to ROCKER MOLDING SCUFF PLATE REPLACEMENT - REAR   .
  3. Remove the assist step. Refer to Assist Step Replacement   in Frame and Underbody.
  4. Remove the rocker panel molding bolts located at each end of the rocker panel molding.

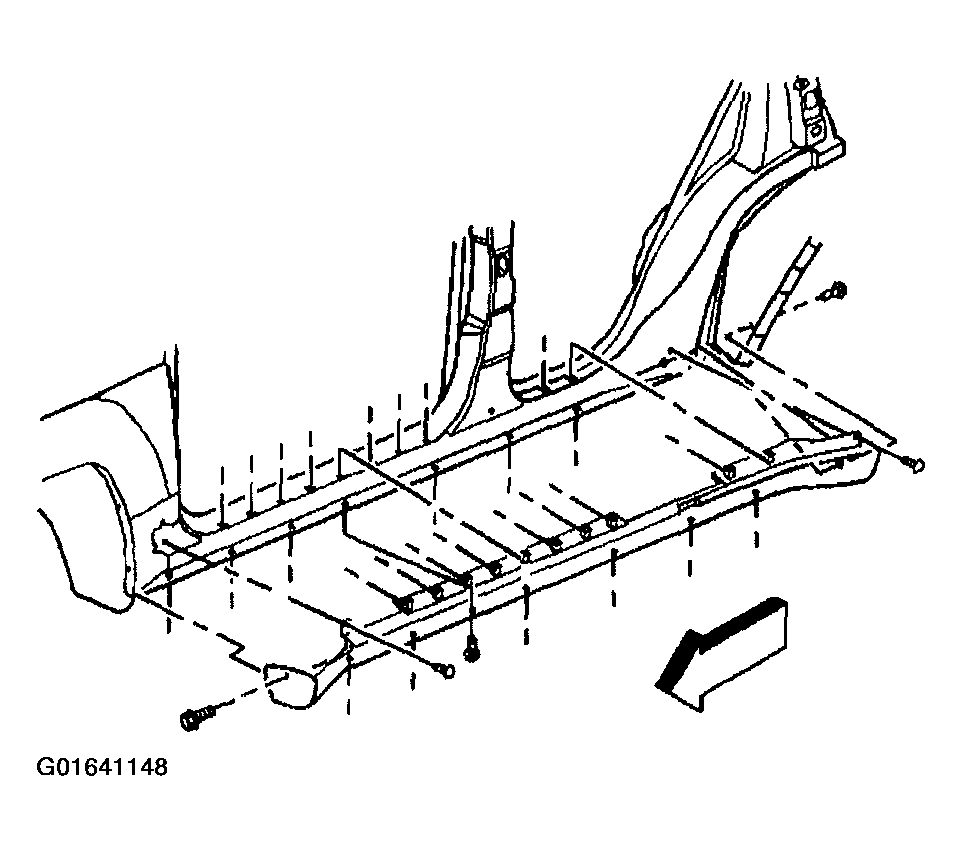

    Fig 1: Removing Rocker Panel Molding Bolts (Trailblazer, Envoy, Bravada)
    G01641148Courtesy of GENERAL MOTORS CORP.
  5. Use the J 36796  in order to remove the 7 push-pins that retain the bottom of the rocker panel molding to the body.
  6. Remove the rocker panel molding from the vehicle.
