Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tail lamp assembly from the vehicle. Refer to TAIL LAMP REPLACEMENT  in Lighting Systems.
  2. Release the 4 tabs that retain the trim to the tail lamp.
  3. Remove the trim from the tail lamp.

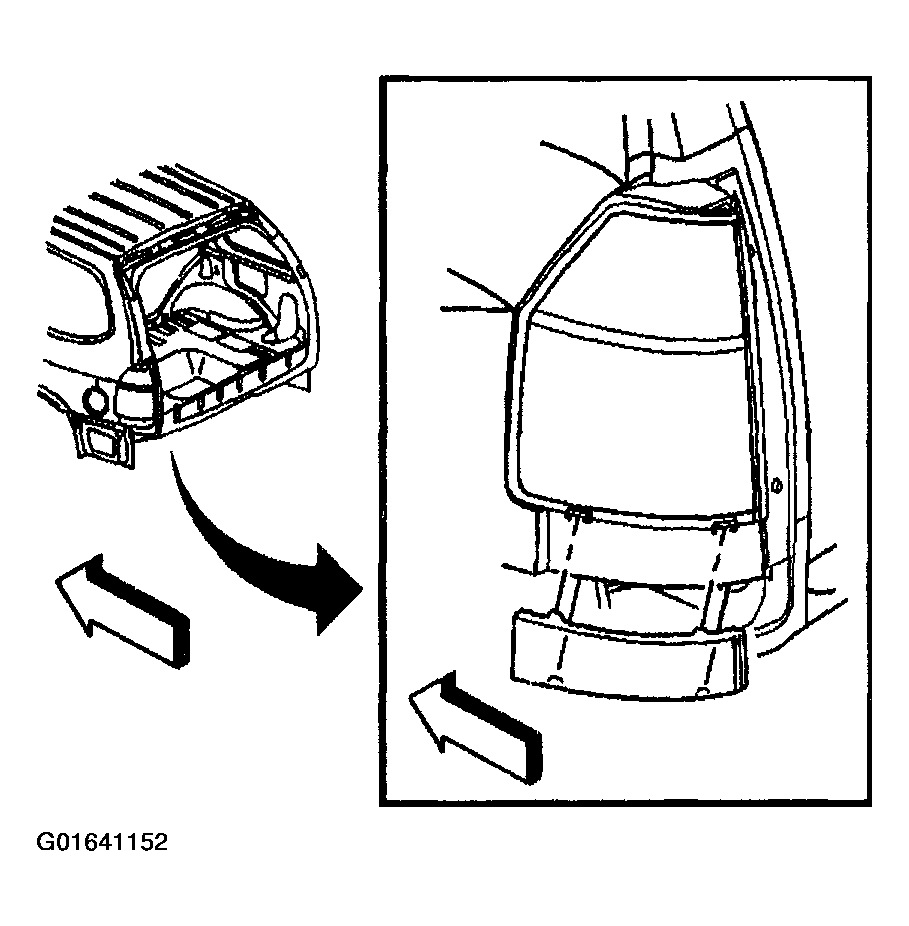

    Fig 1: Removing Trim From Tail Lamp
    G01641152Courtesy of GENERAL MOTORS CORP.
