Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Release the clips that retain the hood molding to the front of the hood.
  3. Remove the hood molding from the hood.

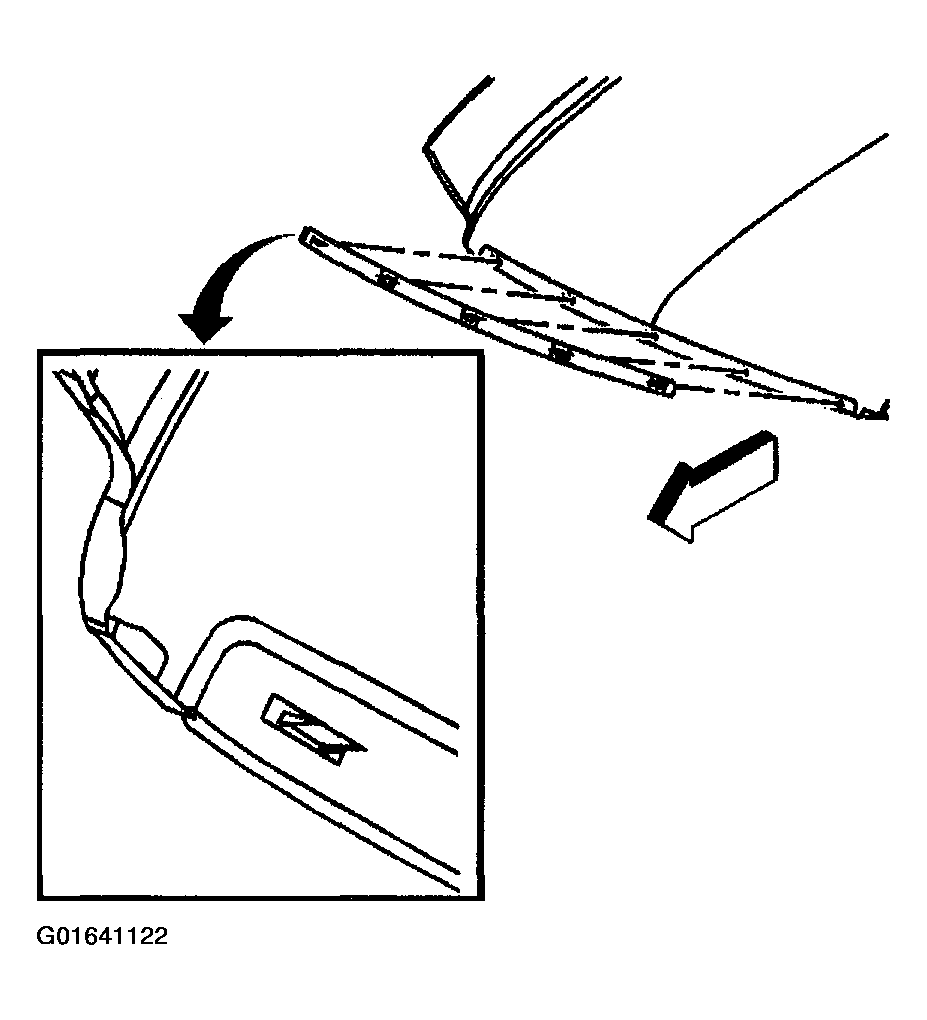

    Fig 1: Removing Hood Molding From Hood
    G01641122Courtesy of GENERAL MOTORS CORP.
