Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 6 push-pins that secure the wheel opening molding to the fender.
  2. Remove the molding.
    IMPORTANT: Be careful not to scratch or chip the paint.
    1. 2.1. Heat the wheel opening molding using a J 25070.  Hold the heat gun approximately 152 mm (6 in) from surface.

      Apply heat using a circular motion for about 30 seconds.

    2. 2.2. Peel the wheel opening molding from the panel surface using a flat-bladed tool.
  3. Remove all adhesive from the fender and the back of the molding using a 3M™ Scotch Brite molding adhesive remover disk 3™ P/N 07501 or equivalent.

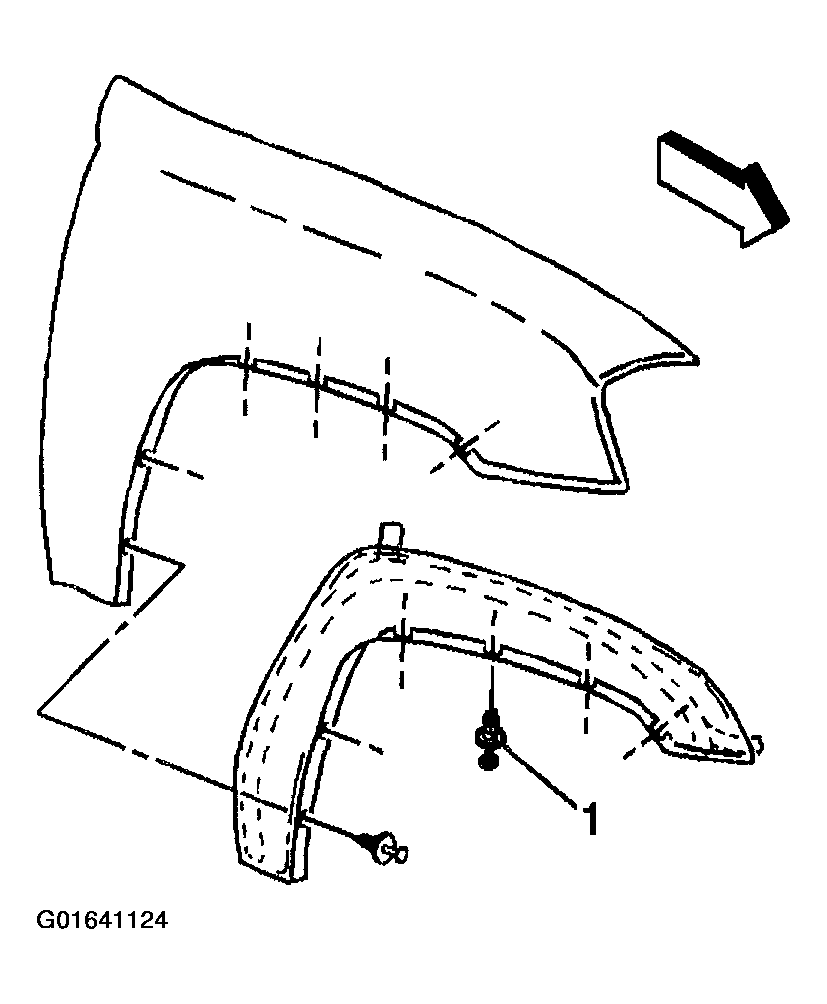

    Fig 1: Removing All Adhesive From Fender & Back Of Molding
    G01641124Courtesy of GENERAL MOTORS CORP.
