Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool in order to release the clips that retain the top of the grille (2) to the body.
  2. Lift the grille (2) out of position.
  3. Release the quick-connect (4) on the headlamp washer supply hose.
  4. Remove the grille from the vehicle.
  5. Place the grille on a clean, prepared surface.

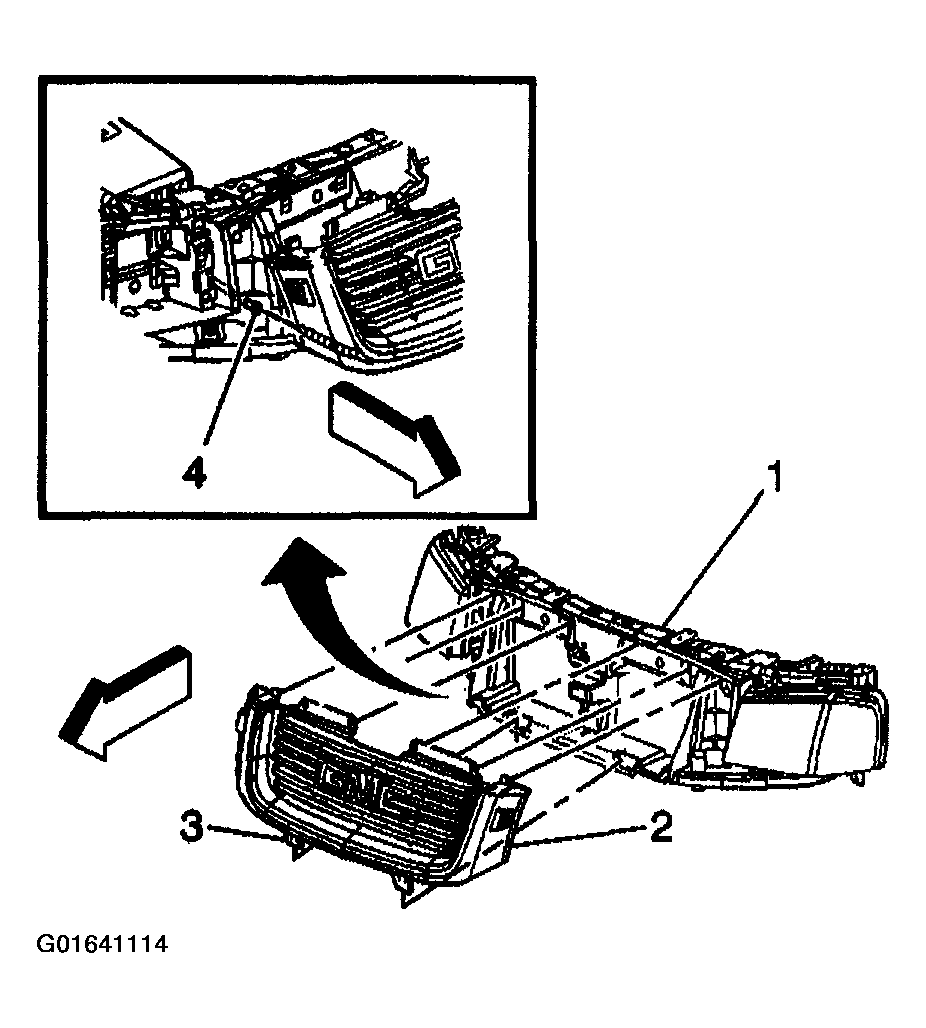

    Fig 1: Removing Grille From Vehicle
    G01641114Courtesy of GENERAL MOTORS CORP.
  6. Release the quick-connects (3) on the headlamp washer nozzle hoses.
  7. Spread the retaining tabs (1) on the grille in order to release the headlamp washer nozzle.
  8. Remove the headlamp washer nozzle from the front of the grille.
  9. Remove the headlamp washer hose (4) from the grille.

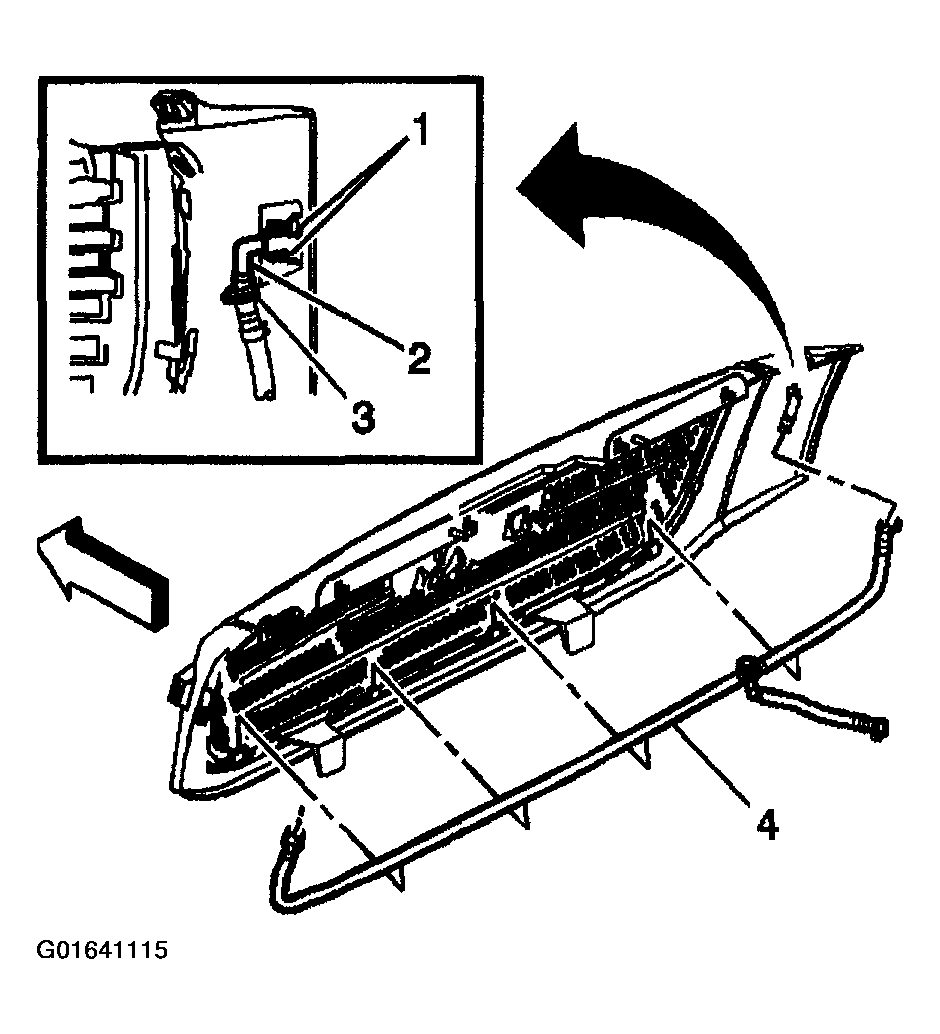

    Fig 2: Removing Headlamp Washer Hose From Grille
    G01641115Courtesy of GENERAL MOTORS CORP.
