Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool in order to release the clips that retain the grille to the headlamp panel.
  2. Remove the grille from the vehicle.

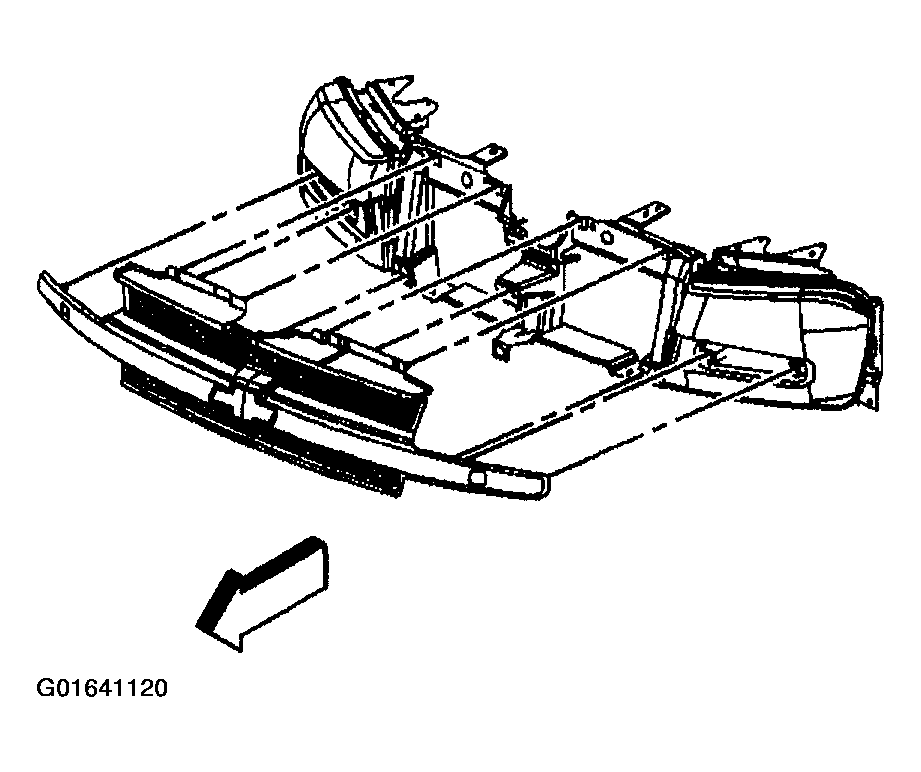

    Fig 1: Removing Grille From Vehicle (Chevrolet)
    G01641120Courtesy of GENERAL MOTORS CORP.
