Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille. Refer to GRILLE REPLACEMENT (GMC)   or GRILLE REPLACEMENT (OLDSMOBILE)   or GRILLE REPLACEMENT (CHEVROLET)   .
  2. Place the grille on a clean, prepared surface.
  3. Remove the emblem retaining nuts.
  4. Remove the emblem from the grille.

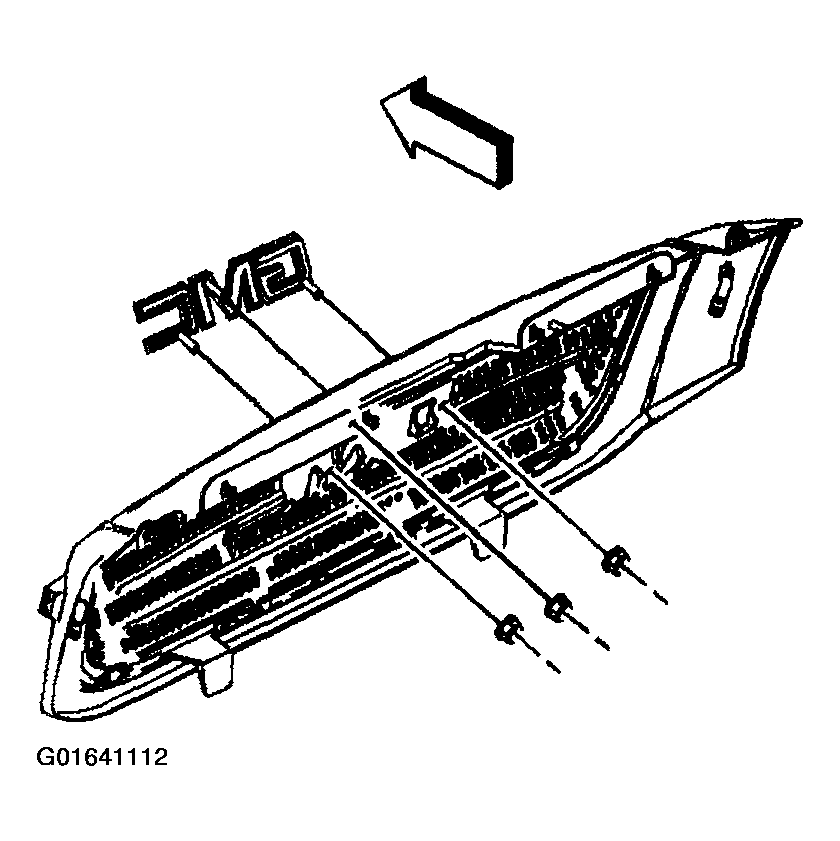

    Fig 1: Removing Emblem From Grille
    G01641112Courtesy of GENERAL MOTORS CORP.
