Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the emblem to the grille.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the nuts that retain the emblem to the grille.
Tighten

Tighten the nuts to 3 N.m (27 lb in).
Install the grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (OLDSMOBILE) or GRILLE REPLACEMENT (CHEVROLET) .

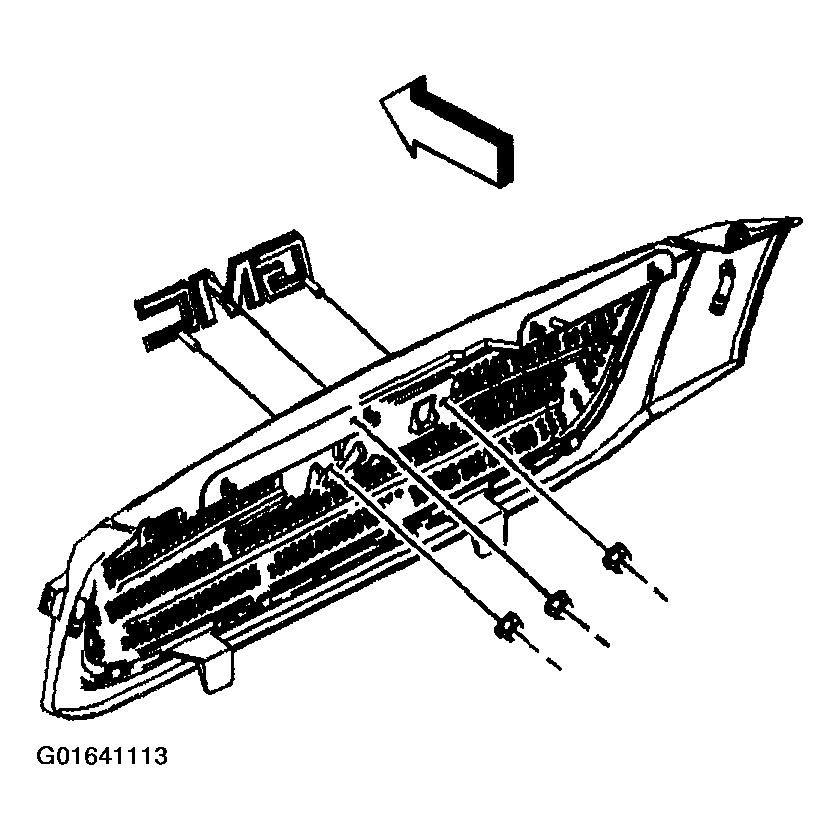

Fig 1: Installing Emblem To Grille
Courtesy of GENERAL MOTORS CORP.
