Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console. Refer to OVERHEAD CONSOLE REPLACEMENT - FRONT  or to OVERHEAD CONSOLE REPLACEMENT - REAR  in Interior Trim.
  2. Disconnect the electrical connector from the garage door opener (3).
  3. Remove the 3 retaining screws from the garage door opener.
  4. Remove the garage door opener from the overhead console.
  5. Remove the button assembly from the overhead console.

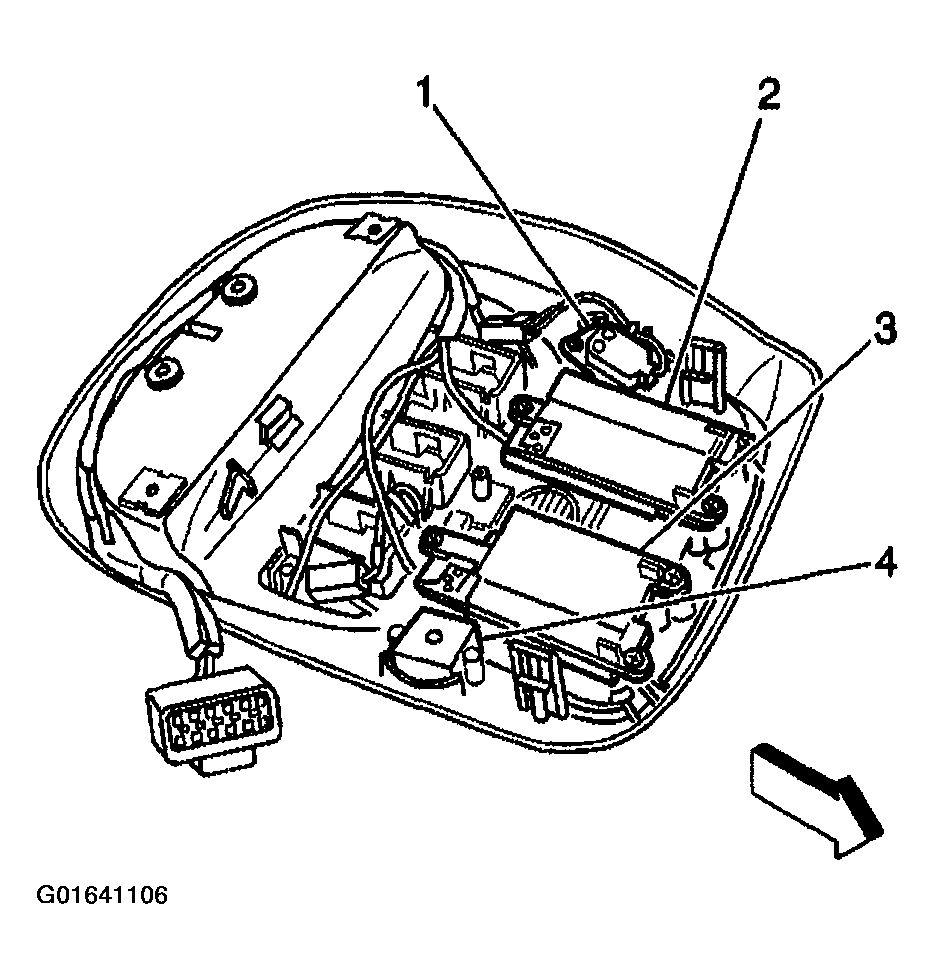

    Fig 1: Disconnecting Electrical Connector & Removing Garage Door Opener
    G01641106Courtesy of GENERAL MOTORS CORP.
