Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the button assembly to the overhead console.
Install the garage door opener to the overhead console. Fully recess the light indicator into the opening (1).

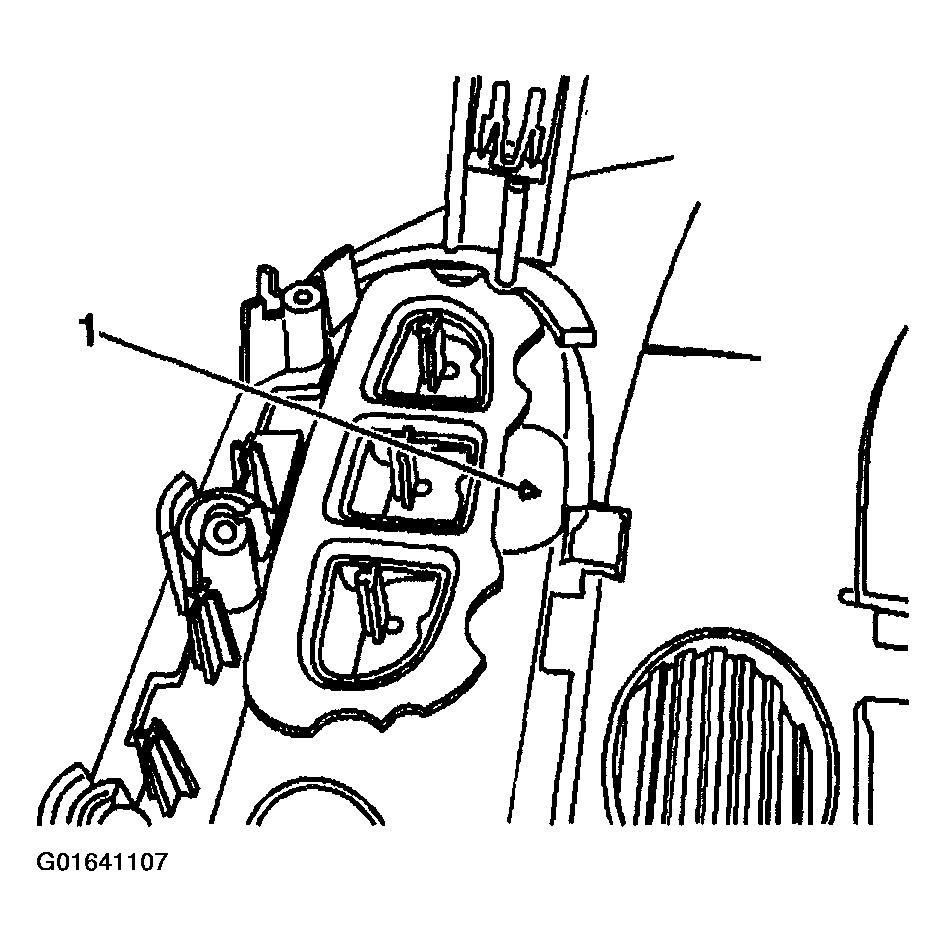

Fig 1: Installing Garage Door Opener & Recess Light Indicator
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the 3 retaining screws to the garage door opener.
Tighten

Tighten the screws to 0.8 N.m (7 lb in).
Connect the electrical connector to the garage door opener (3).
Install the overhead console. Refer to OVERHEAD CONSOLE REPLACEMENT - FRONT or to OVERHEAD CONSOLE REPLACEMENT - REAR in Interior Trim.

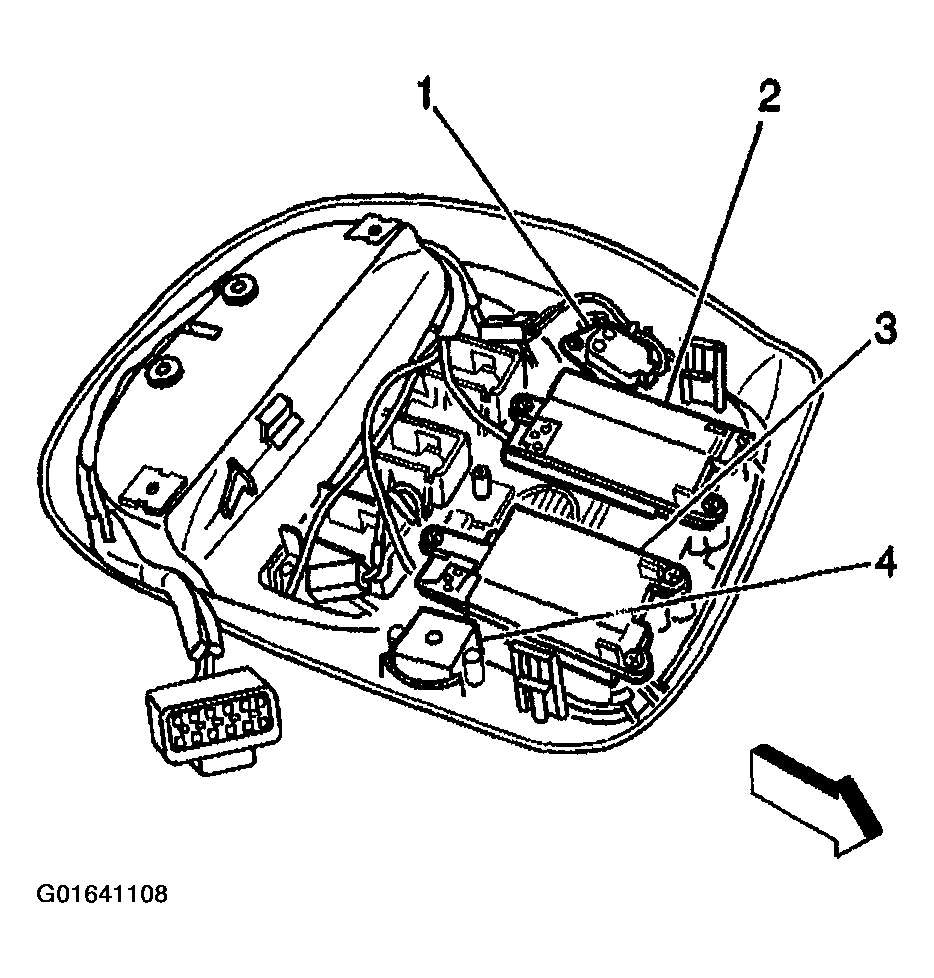

Fig 2: Connecting Electrical Connector To Garage Door Opener
Courtesy of GENERAL MOTORS CORP.
