Cruise Control Schematics (ECBM and Vehicle Speed Signal)

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

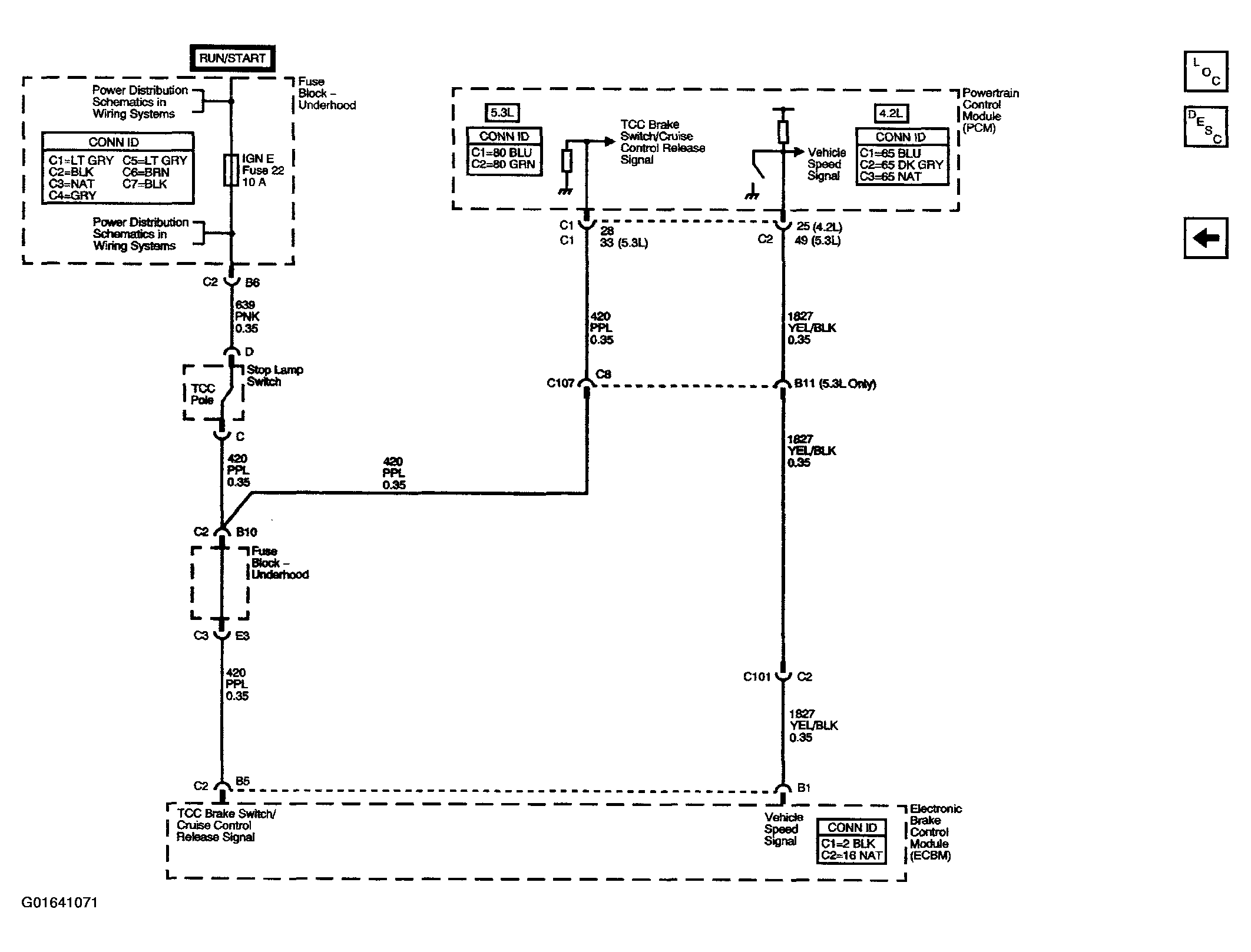

Fig 1: Cruise Control Schematic Diagram (ECBM & Vehicle Speed Signal)
G01641071Courtesy of GENERAL MOTORS CORP.
