Test Description

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 3. Tests for a magnetic field near the ignition lock cylinder.

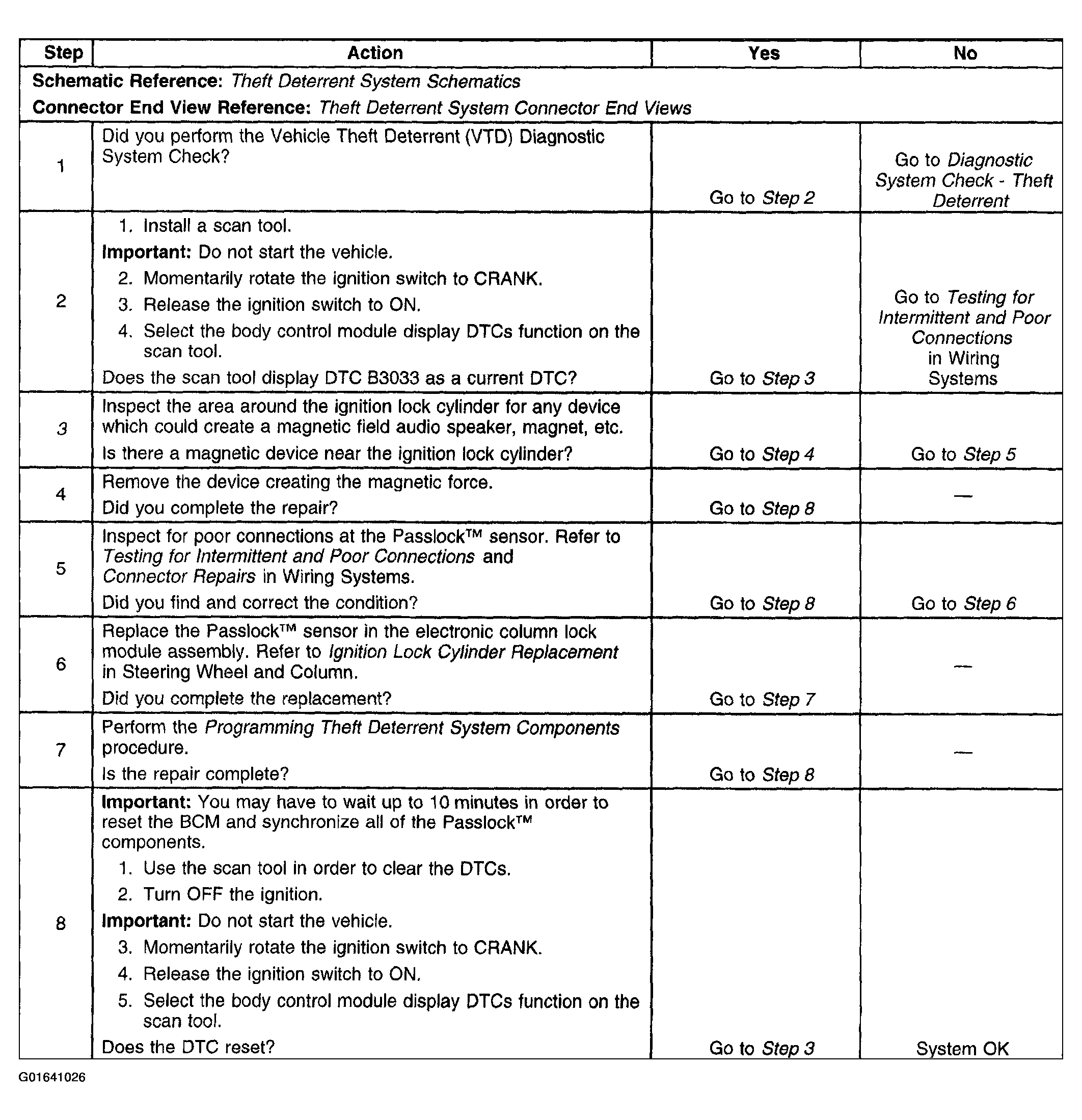

Fig 1: DTC B3033 - Diagnostic Chart
G01641026Courtesy of GENERAL MOTORS CORP.
