Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT   .
  2. Remove the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER   .  .
  3. Remove the 2 headlamp trim plate retaining nuts.
  4. Use a plastic flat bladed tool in order to release the retaining clips.
  5. Remove the headlamp trim plate from the instrument panel (IP).

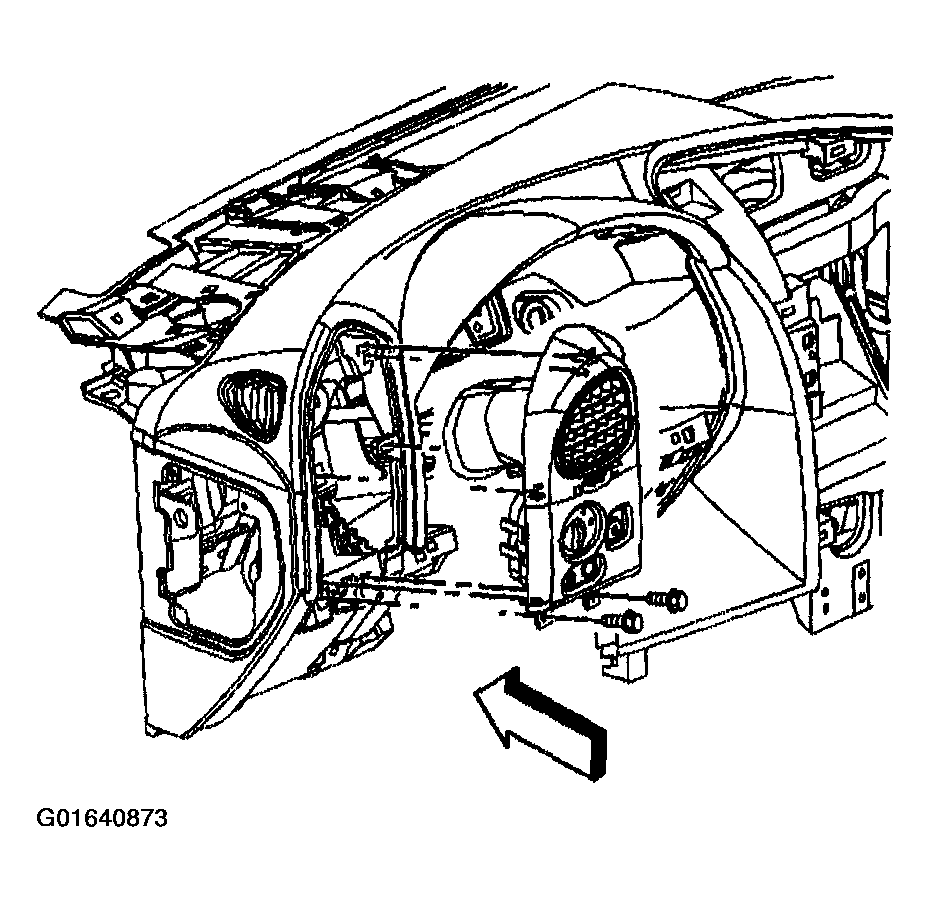

    Fig 1: Removing Headlamp Trim Plate From Instrument Panel
    G01640873Courtesy of GENERAL MOTORS CORP.
