Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headlamp trim plate to the IP, ensuring the retaining clips are fully seated.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 2 headlamp trim plate retaining screws.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

  3. Install the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER   .
  4. Install the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT   .

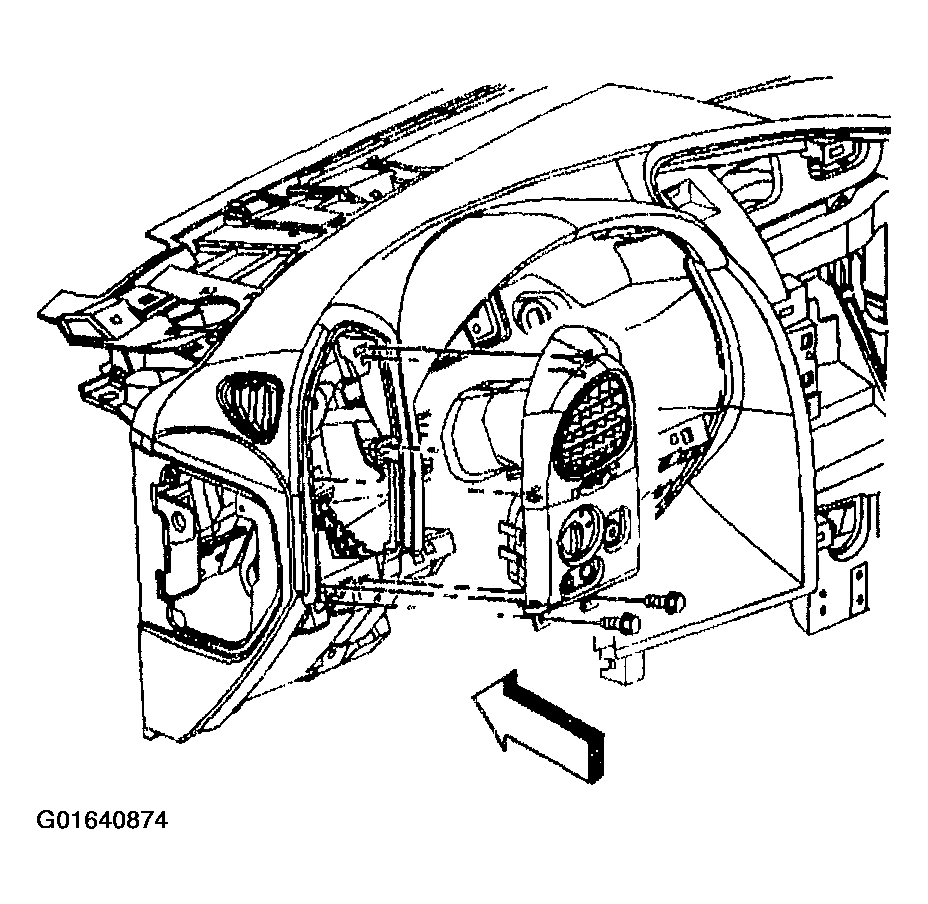

    Fig 1: Installing Headlamp Trim Plate To Instrument Panel
    G01640874Courtesy of GENERAL MOTORS CORP.
