Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the console shift lever bezel. Refer to CONSOLE SHIFT LEVER BEZEL REPLACEMENT (OLDSMOBILE) .
Remove the lower trim plate retaining screws.
Starting at the bottom of the trim plate, release the 2 lower retaining clips and the 2 intermediate retaining clips.
Release the 3 upper retaining clips.
Disconnect the electrical connectors as necessary.
If replacing the trim plate, perform the following steps:
1. 6.1. Remove the rear windshield wiper switch.
  Refer to WIPER/WASHER SWITCH REPLACEMENT - REAR in Wiper/Washer Systems.
2. 6.2. If equipped, remove the cigar lighter and 12-volt power supply. Refer to CIGAR LIGHTER OR 12-VOLT POWER SUPPLY REPLACEMENT .

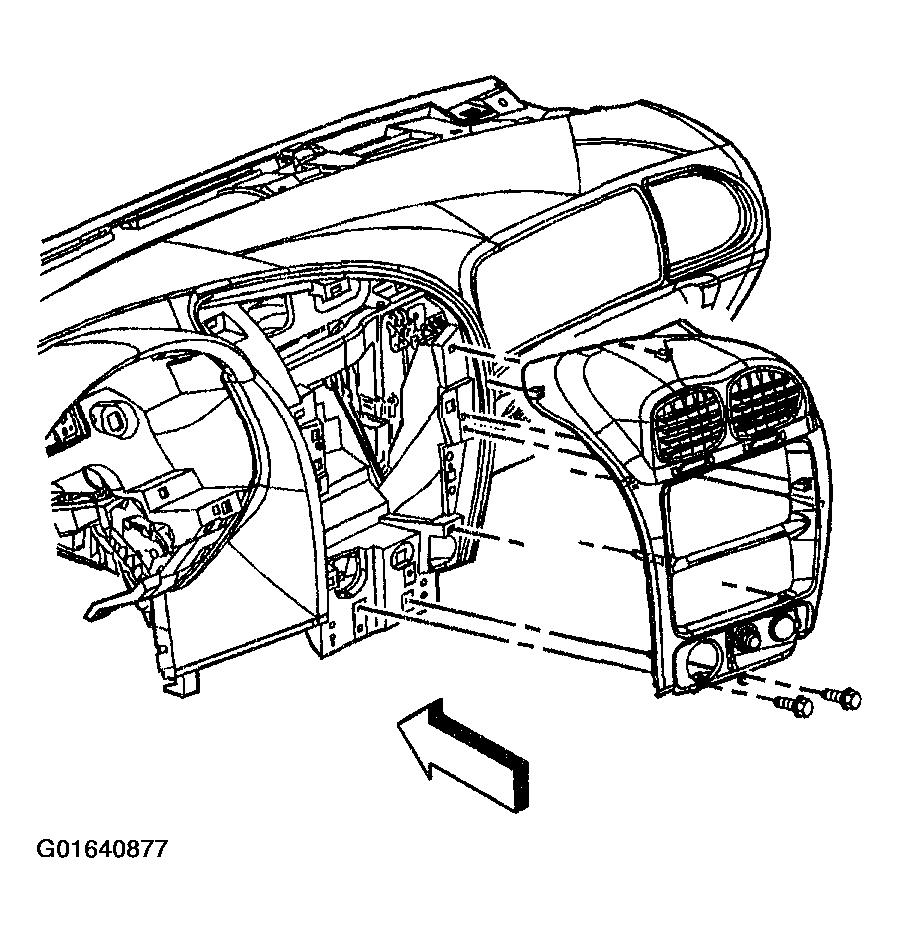

  Fig 1: Removing Lower Trim Plate & Retaining Screws (Oldsmobile)
  Courtesy of GENERAL MOTORS CORP.
