Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT   .
  2. Remove the 4 trim panel retaining screws.
  3. Release the clips that retain the trim panel to the IP.
  4. Remove the trim panel from the IP.

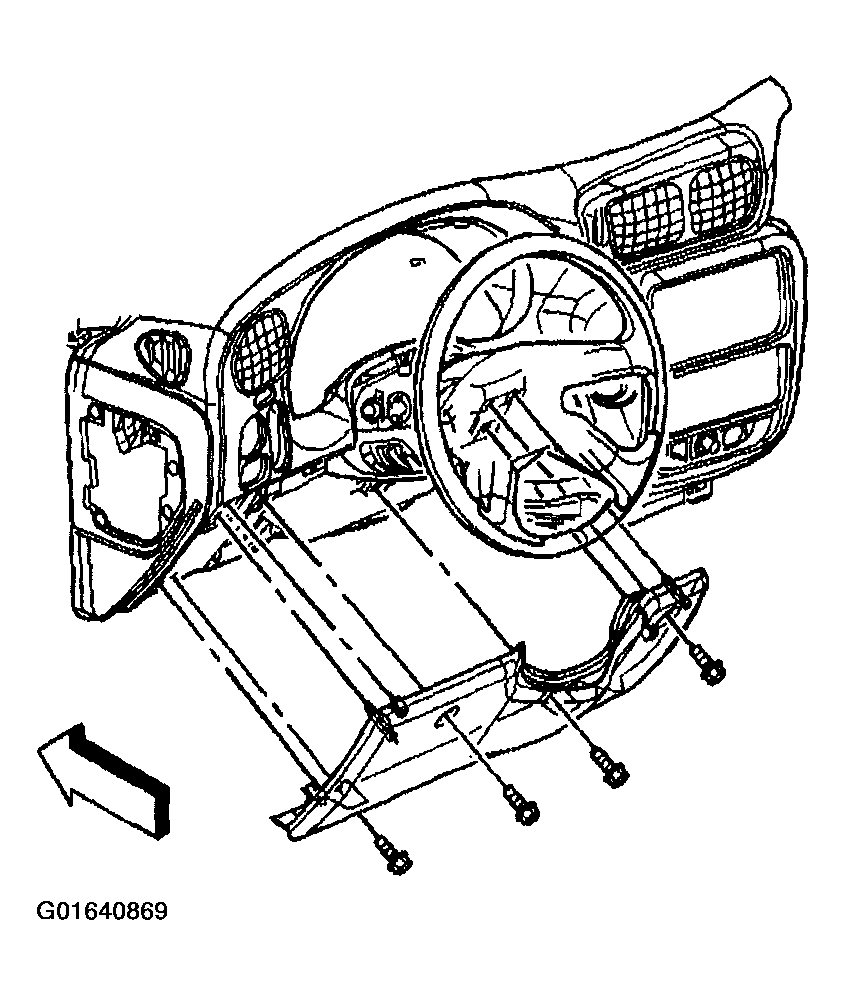

    Fig 1: Removing Trim Panel & Screws From Instrument Panel (Knee Bolster)
    G01640869Courtesy of GENERAL MOTORS CORP.
