Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the trim panel to the IP.
  2. Seat the clips that retain the trim panel to the IP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the 4 trim panel retaining screws.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

  4. Install the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT   .

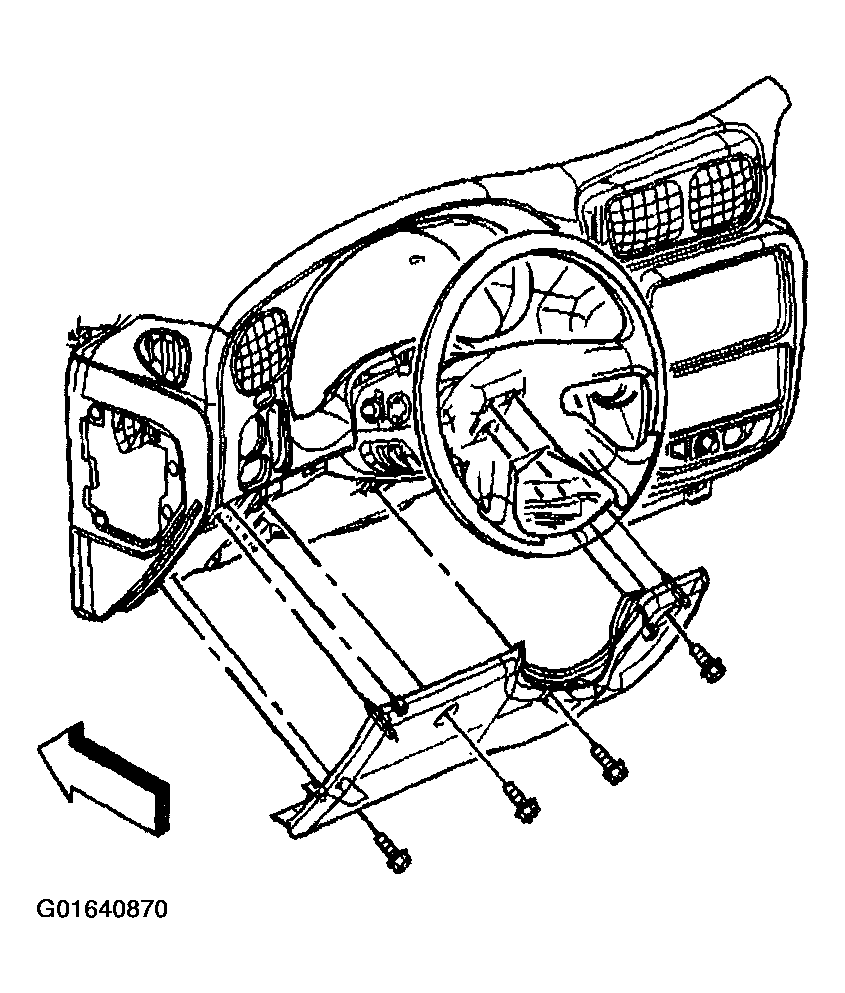

    Fig 1: Installing Trim Panel & Screws To Instrument Panel (Knee Bolster)
    G01640870Courtesy of GENERAL MOTORS CORP.
