Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield pillar garnish moldings.

    Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR  in Interior Trim.

  2. Starting at the outboard edges, release the trim pad retaining clips.

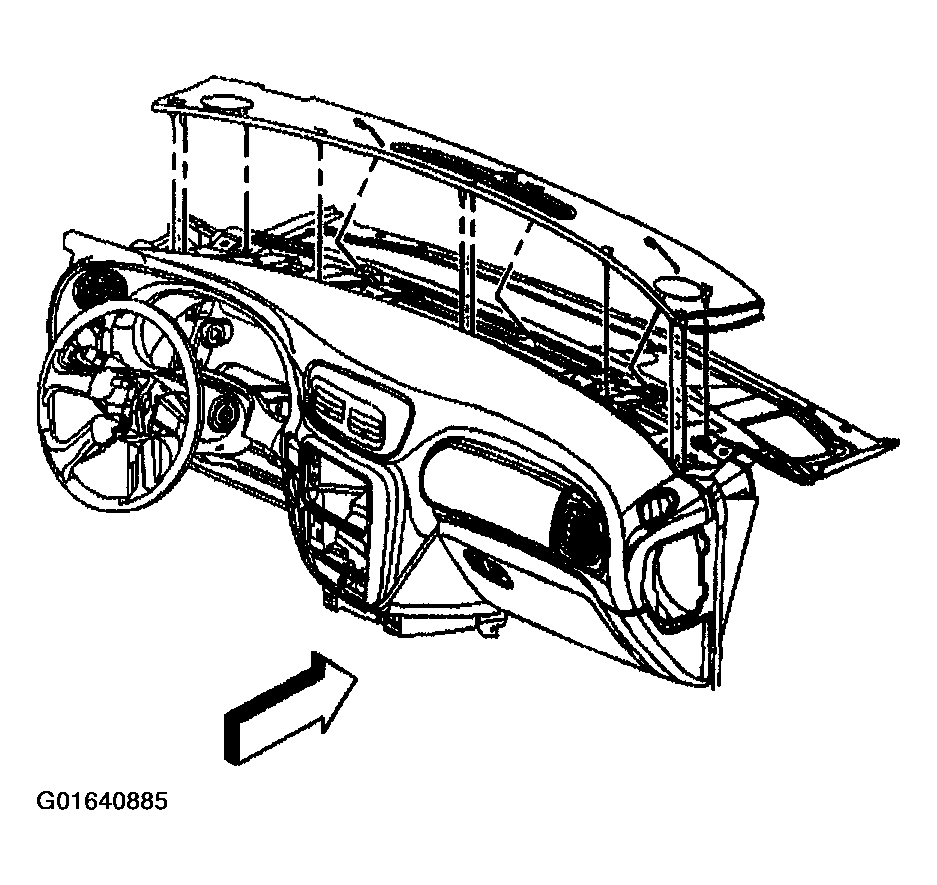

    Fig 1: Removing Upper Trim Pad Retaining Clips
    G01640885Courtesy of GENERAL MOTORS CORP.
  3. Rotate the ambient light sensor counter-clockwise 1/4 turn in order to release the sensor from the trim pad.
  4. Remove the trim pad from the vehicle.
    IMPORTANT: Cover the windshield defrost vents with clean shop rags.
  5. Disconnect the electrical connector from the ambient light sensor and retain the sensor for installation.

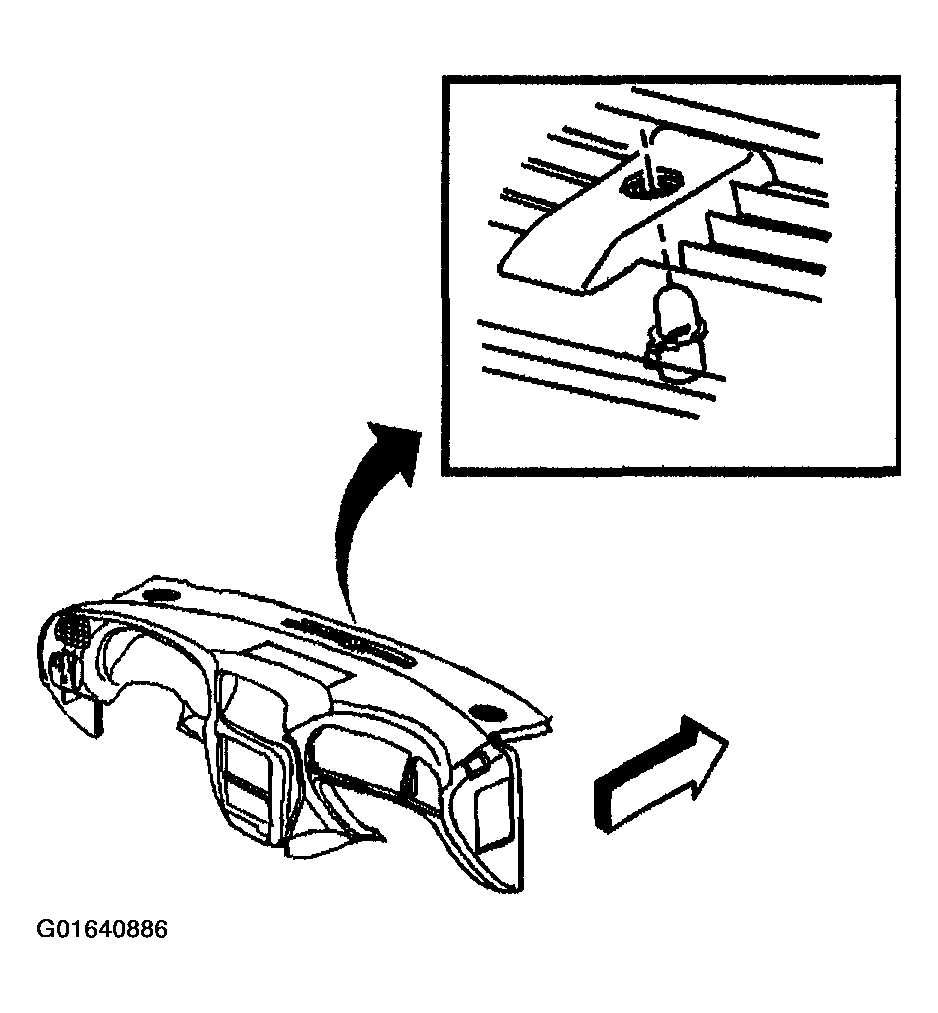

    Fig 2: Removing Ambient Light Sensor From Trim Pad
    G01640886Courtesy of GENERAL MOTORS CORP.
