Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. In order to install the ambient light sensor to the trim pad, rotate the sensor clockwise 1/4 turn ensuring the retaining tabs are fully seated.

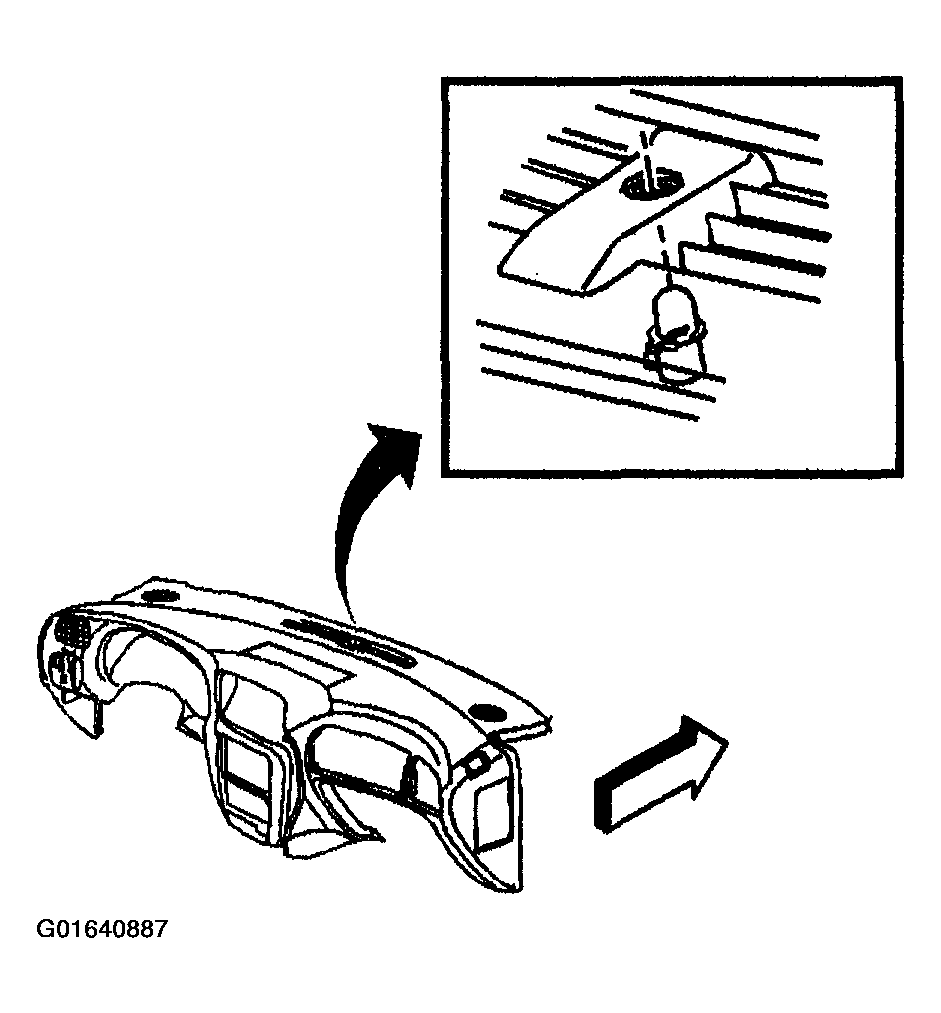

    Fig 1: Installing Ambient Light Sensor To Trim Pad
    G01640887Courtesy of GENERAL MOTORS CORP.
  2. Position the trim pad to the IP.
  3. Connect the electrical connector to the ambient light sensor.
  4. Remove the shop rags from the windshield defrost vents.

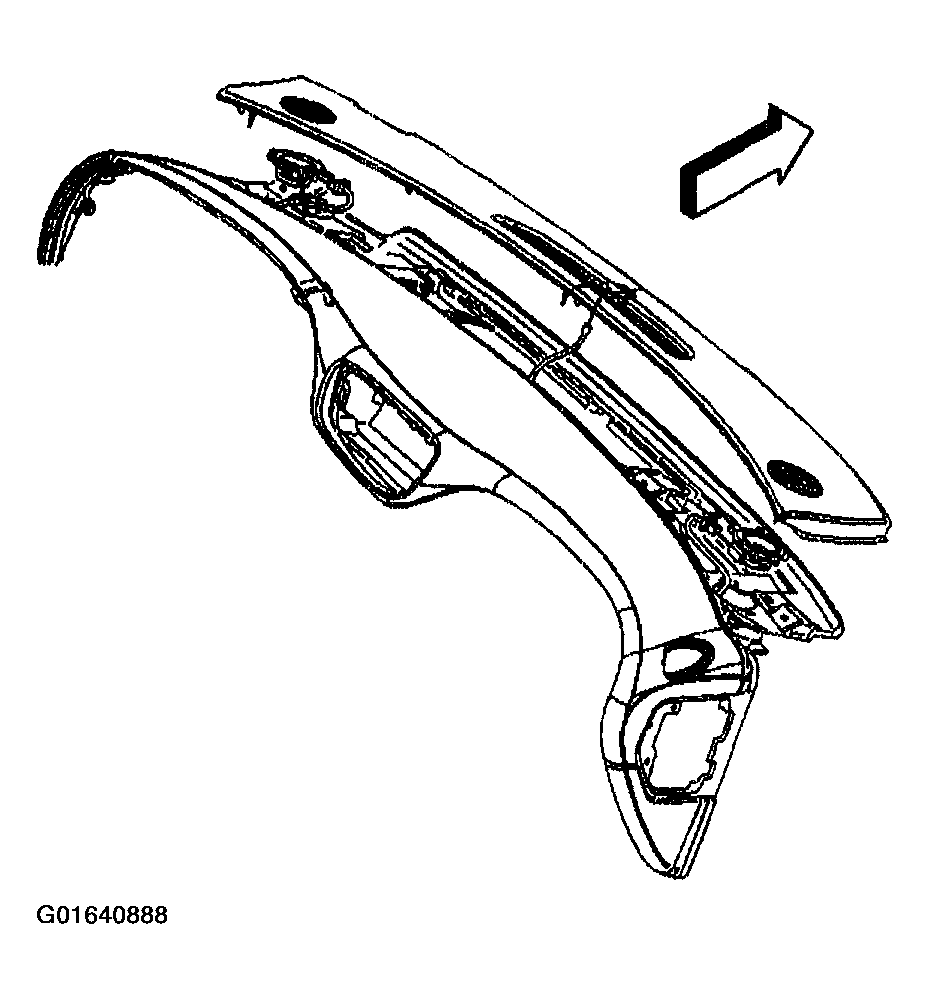

    Fig 2: Connecting Electrical Connector To Ambient Light Sensor
    G01640888Courtesy of GENERAL MOTORS CORP.
  5. Align the locating stems to the IP substrate.
  6. Install the trim pad by seating the retaining clips to the IP substrate.
  7. Install the windshield pillar garnish moldings.

    Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR  in Interior Trim.

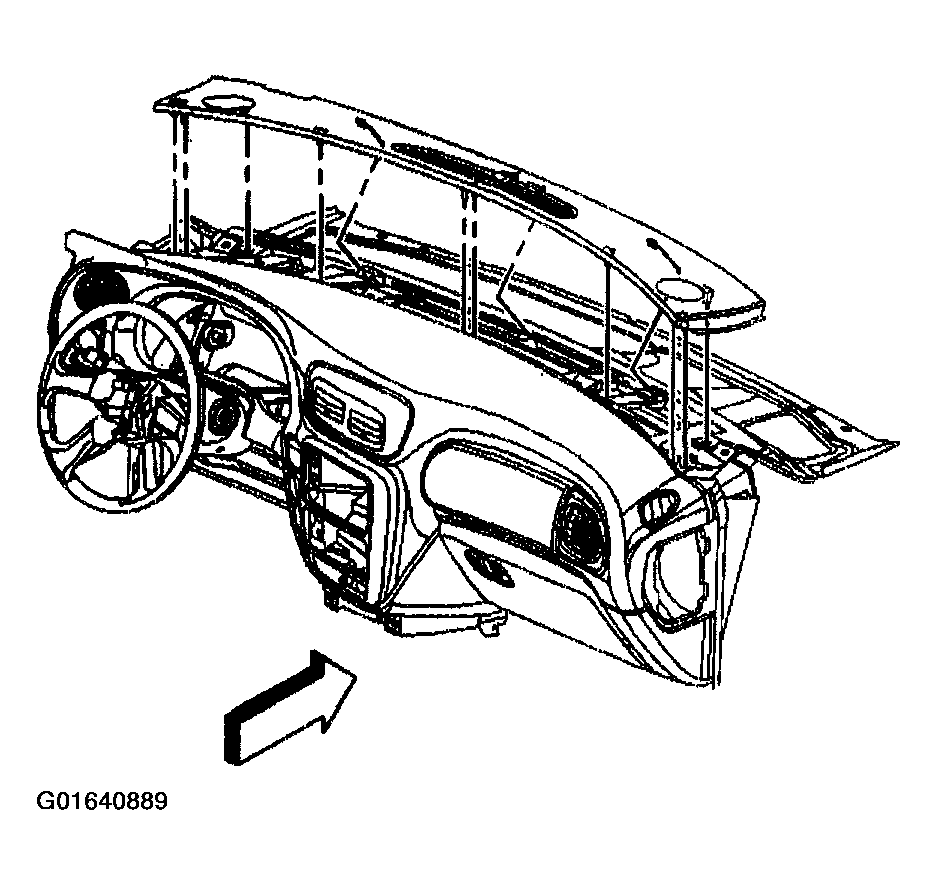

    Fig 3: Installing Upper Trim Pad To Instrument Panel
    G01640889Courtesy of GENERAL MOTORS CORP.
