Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT   .
  2. Remove the knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER   .
  3. Remove the 4 knee bolster retaining nuts.
  4. Remove the knee bolster from the steering column support bracket.

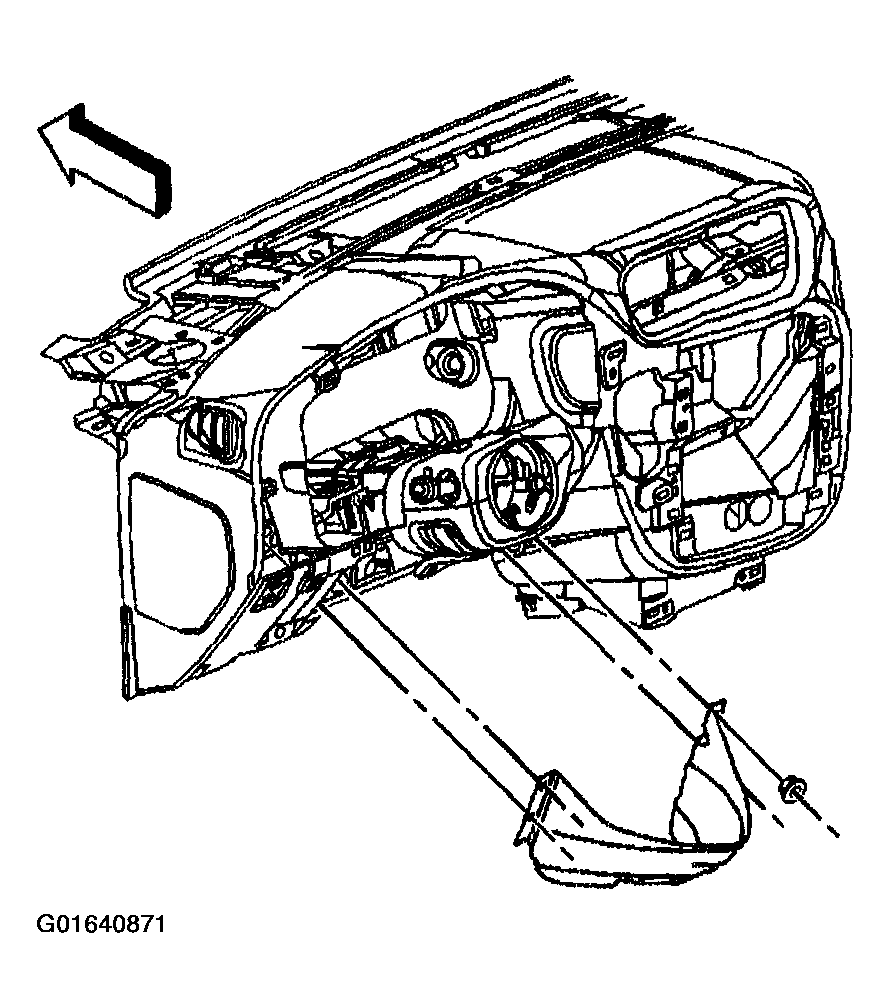

    Fig 1: Removing Knee Bolster From Steering Column Support Bracket
    G01640871Courtesy of GENERAL MOTORS CORP.
